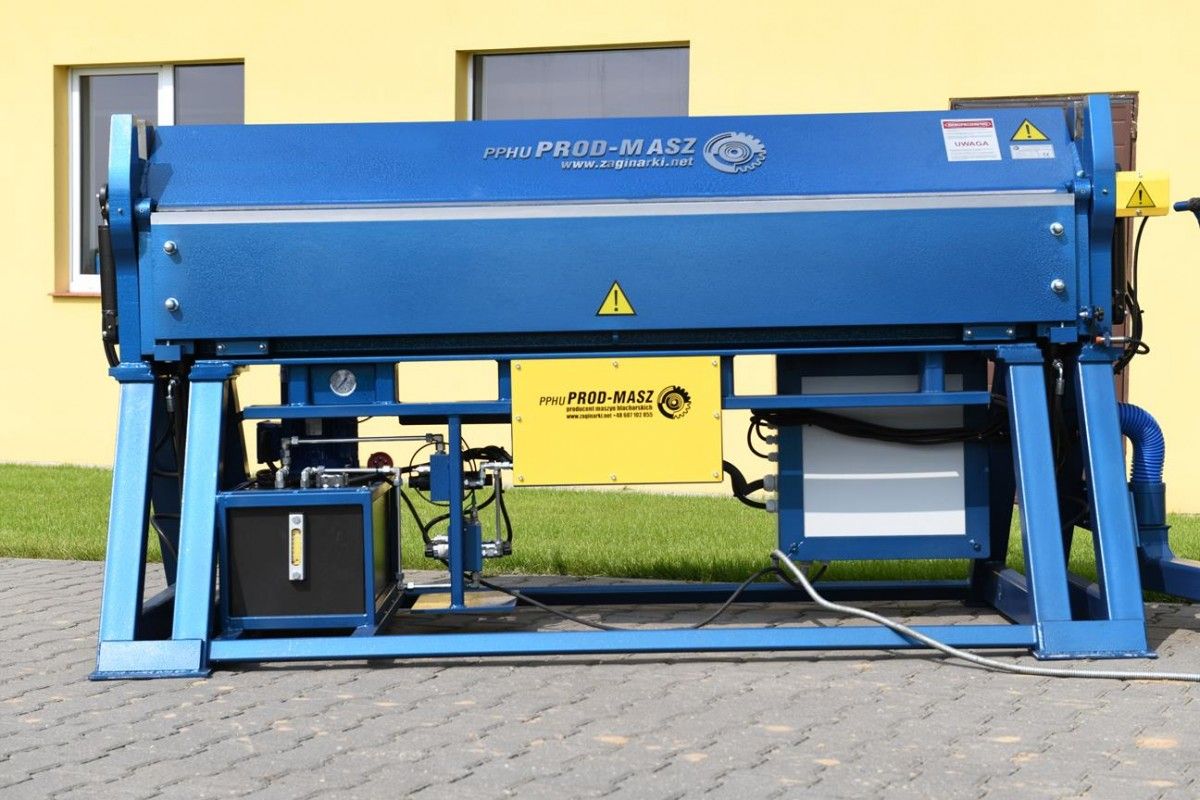

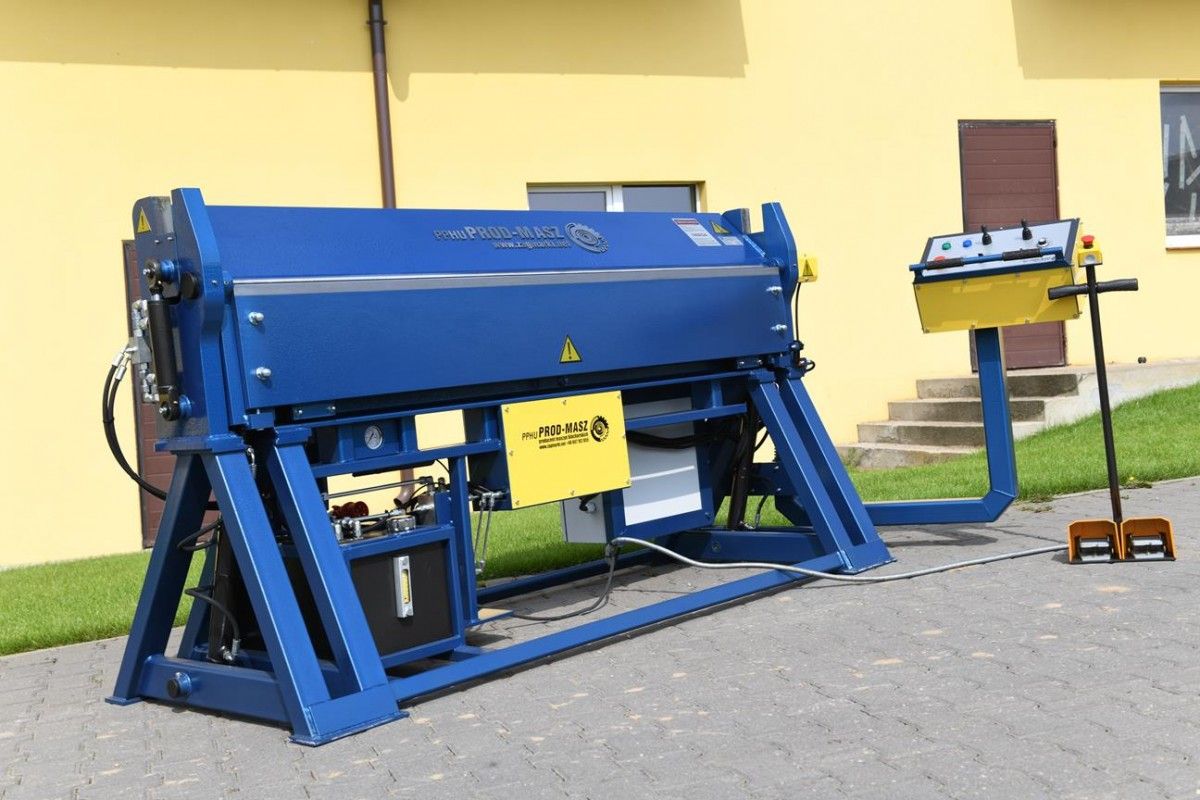

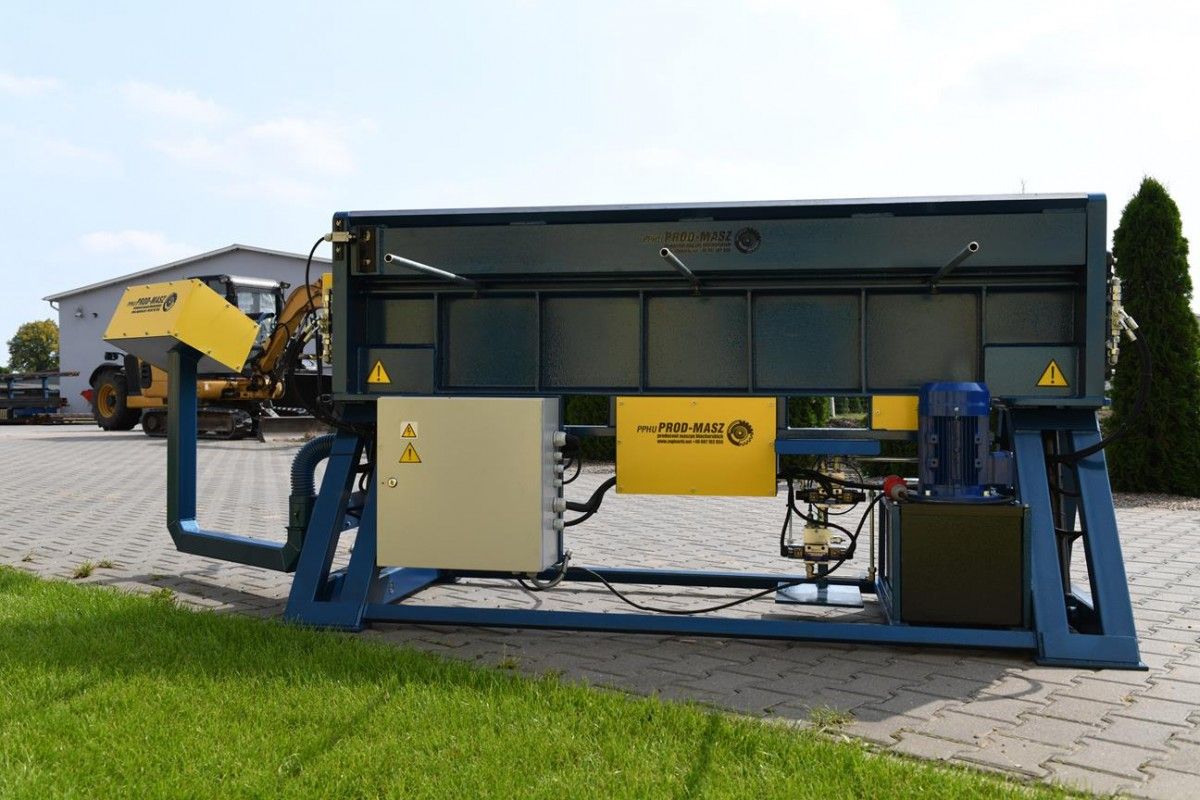

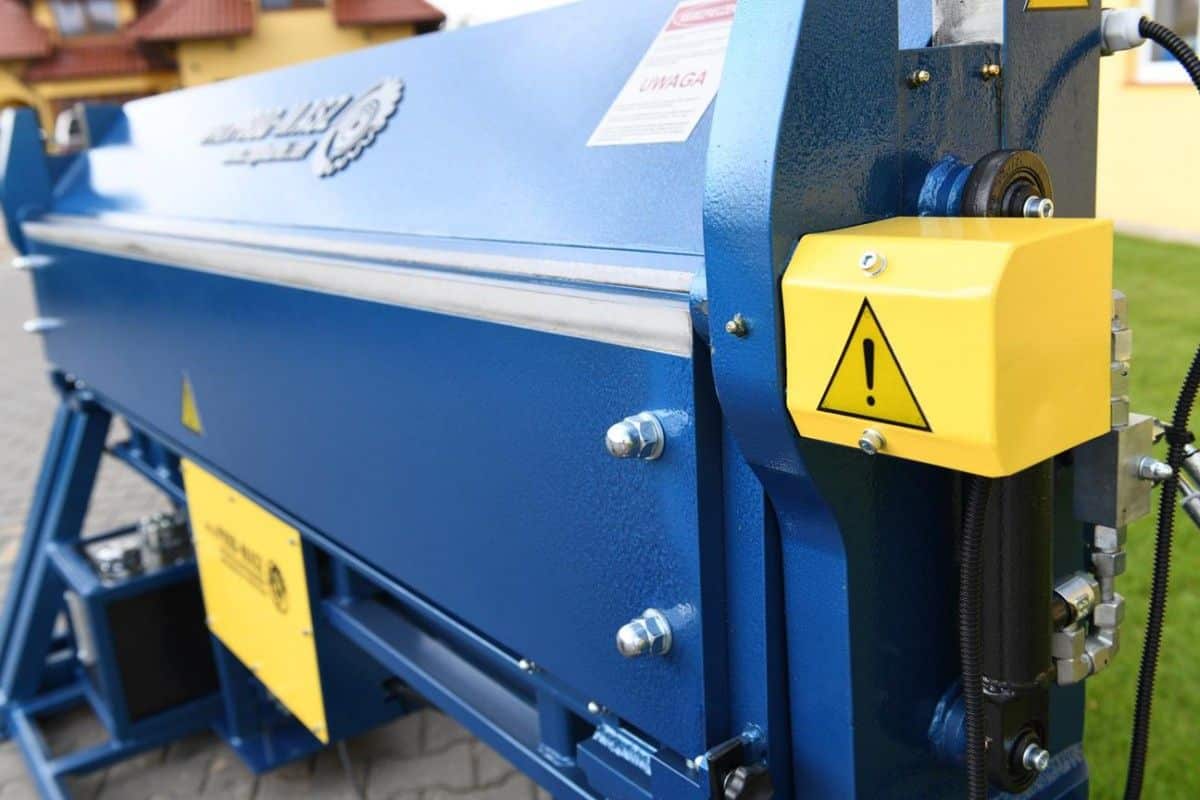

Semi automatic sheet metal folder ZGH-2140/3.0
Semi automatic sheet metal folder ZGH-2140/3.0
Semi-automatic press brake ZGH-2140/3.0/140*
-ᐳ Semi-automatic bending angle, is set on the encoder and potentiometer
-ᐳ The press brake works like a semi-automatic machine. After bending, the cheek returns to the starting position and the pressure cheek returns to the set height. It is set to 10mm.
-ᐳ This sheet metal folder is suitable for series production.
Description
- maximum working length: 2140 mm
- Bending capacity: 3.0 mm (steel)
- Bending beam thickness: 30 mm
- Bending angle: max 140 degrees
- max opening: 80-95 mm
- Weight: approx. 1300 kg
- Power: 3 KW - 400 volts

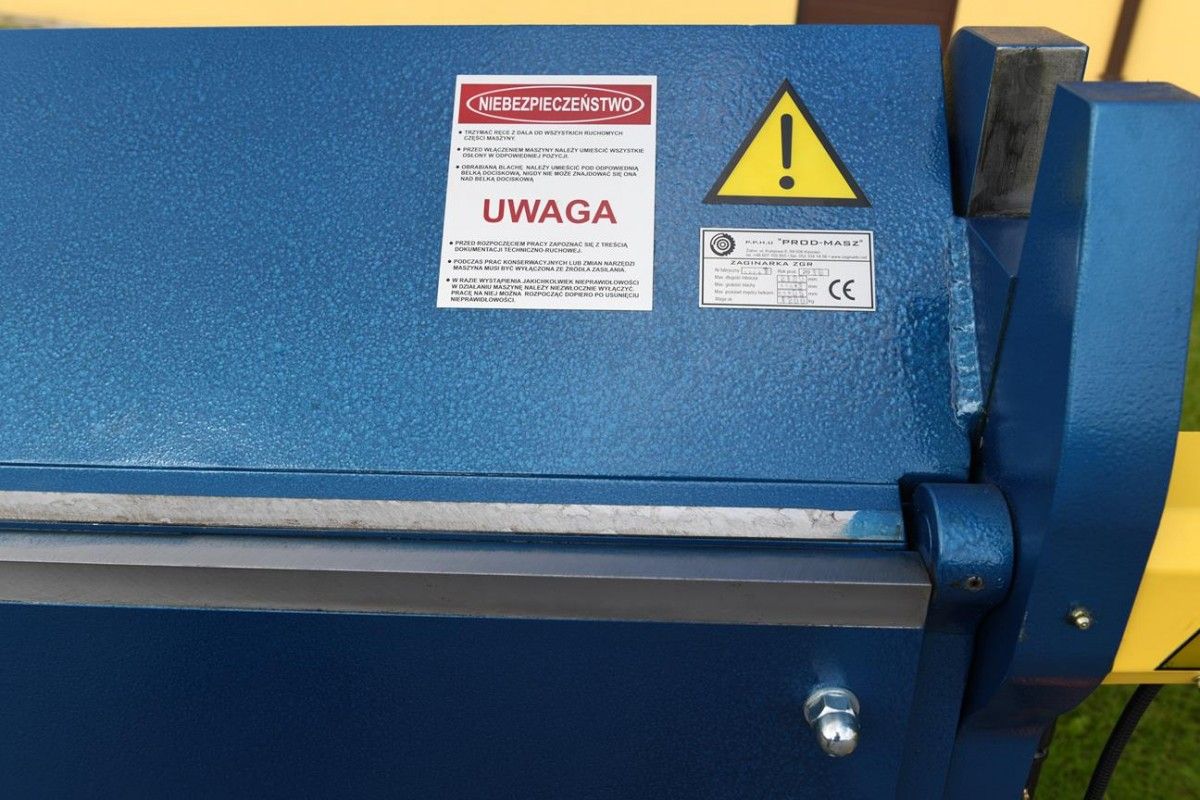

- CE marking

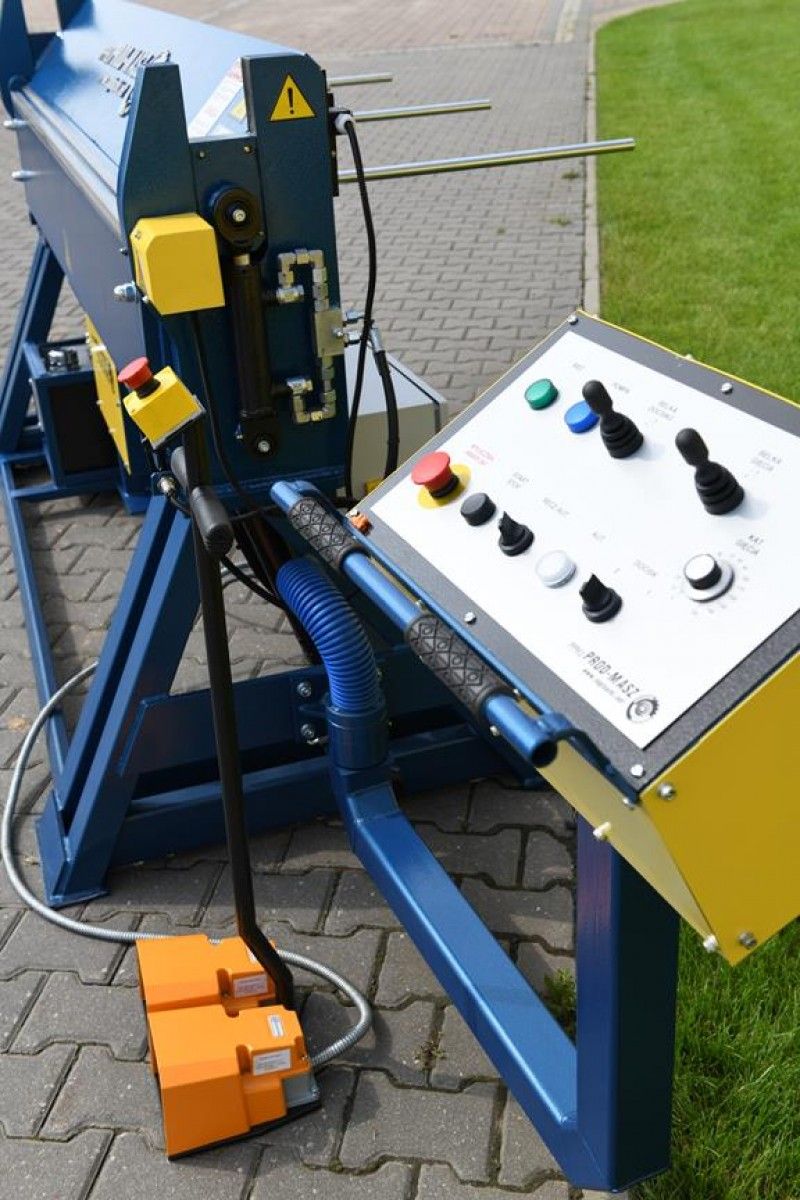

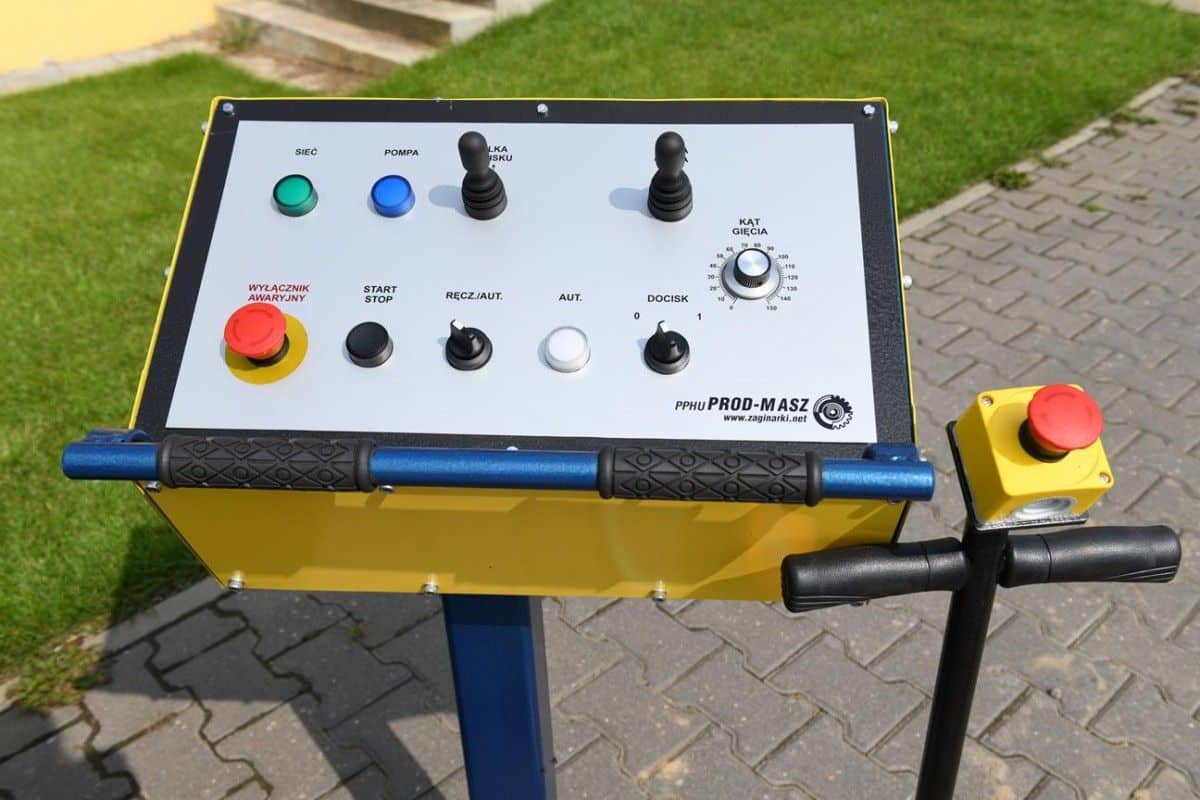

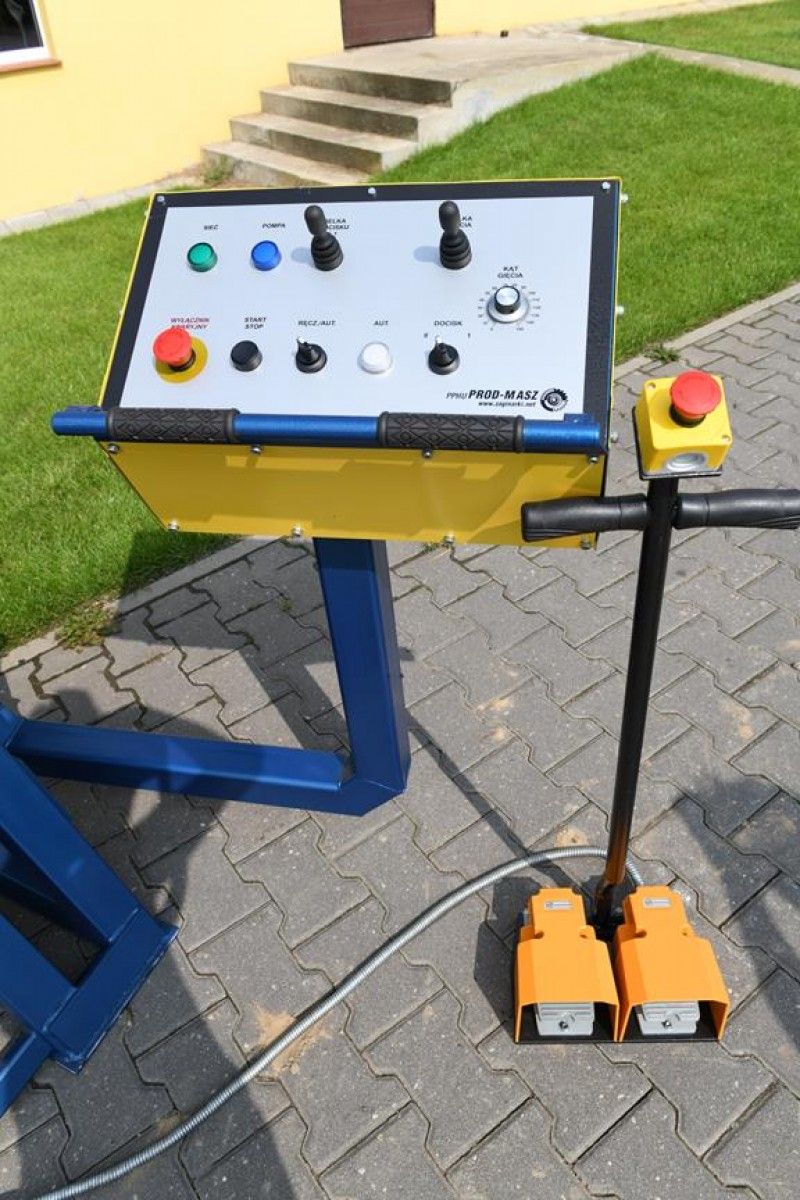

- with a control panel
- Guarantee: 12 months
Ask for a product
