SGR-1250/1.5
SGR-1250/1.5

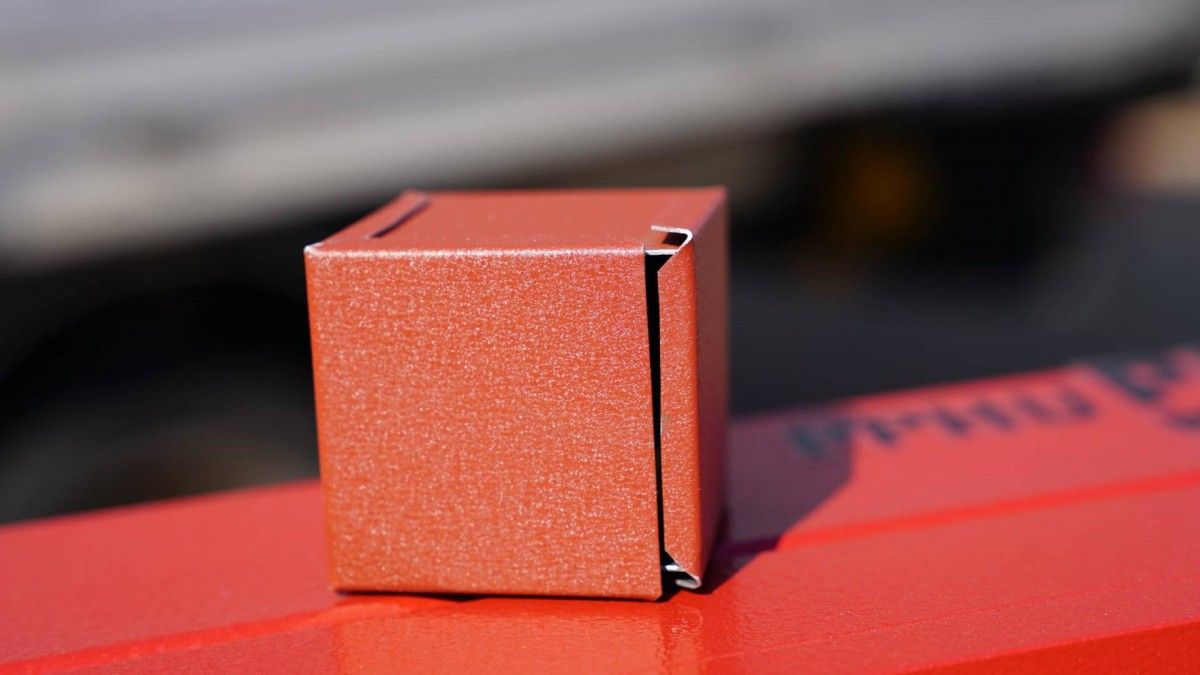

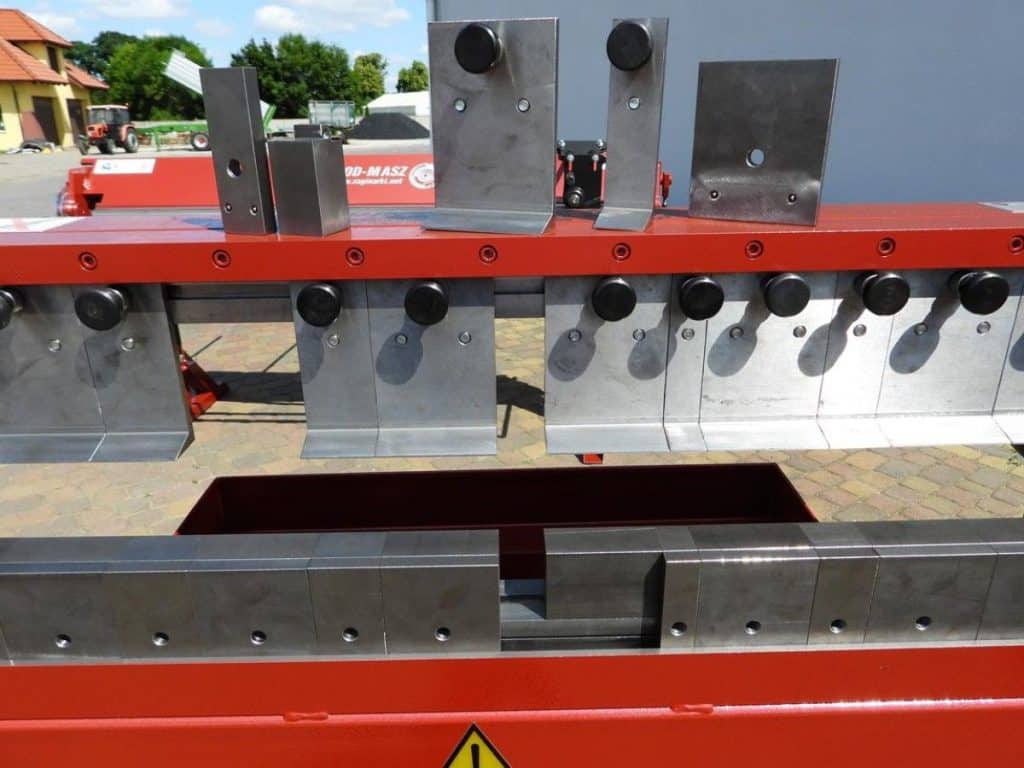

Segments inserts in the upper, lower and bending tub result in a large number of bending options. Cassettes and special profiles with opposite bends are easily achievable with this model.

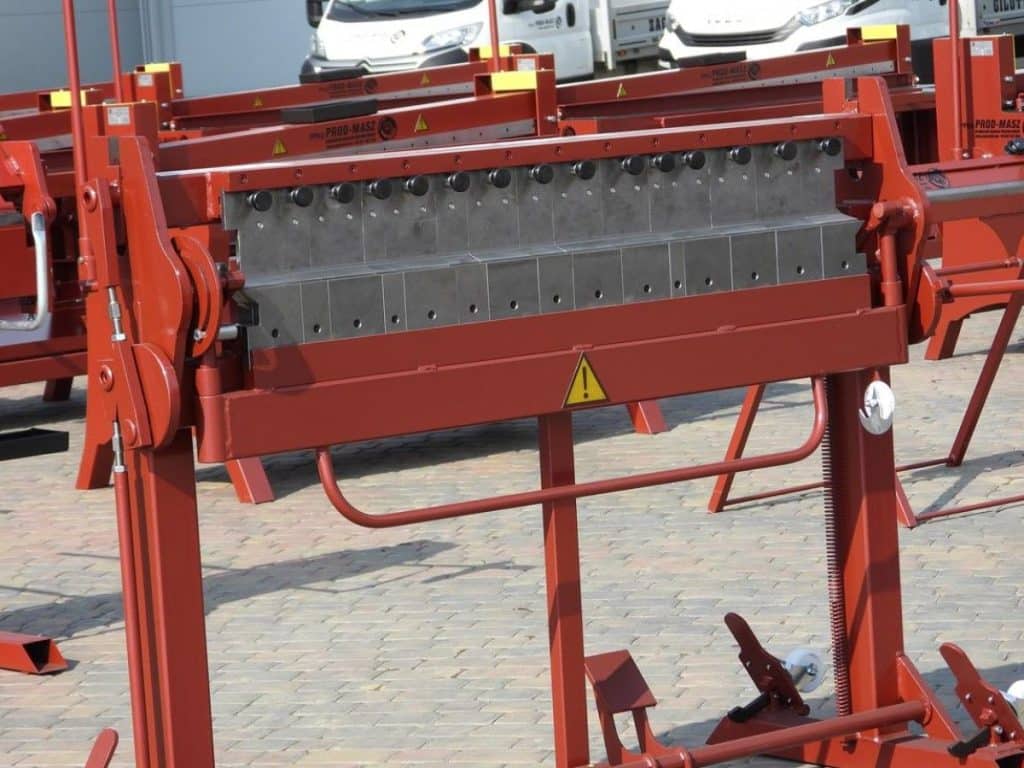

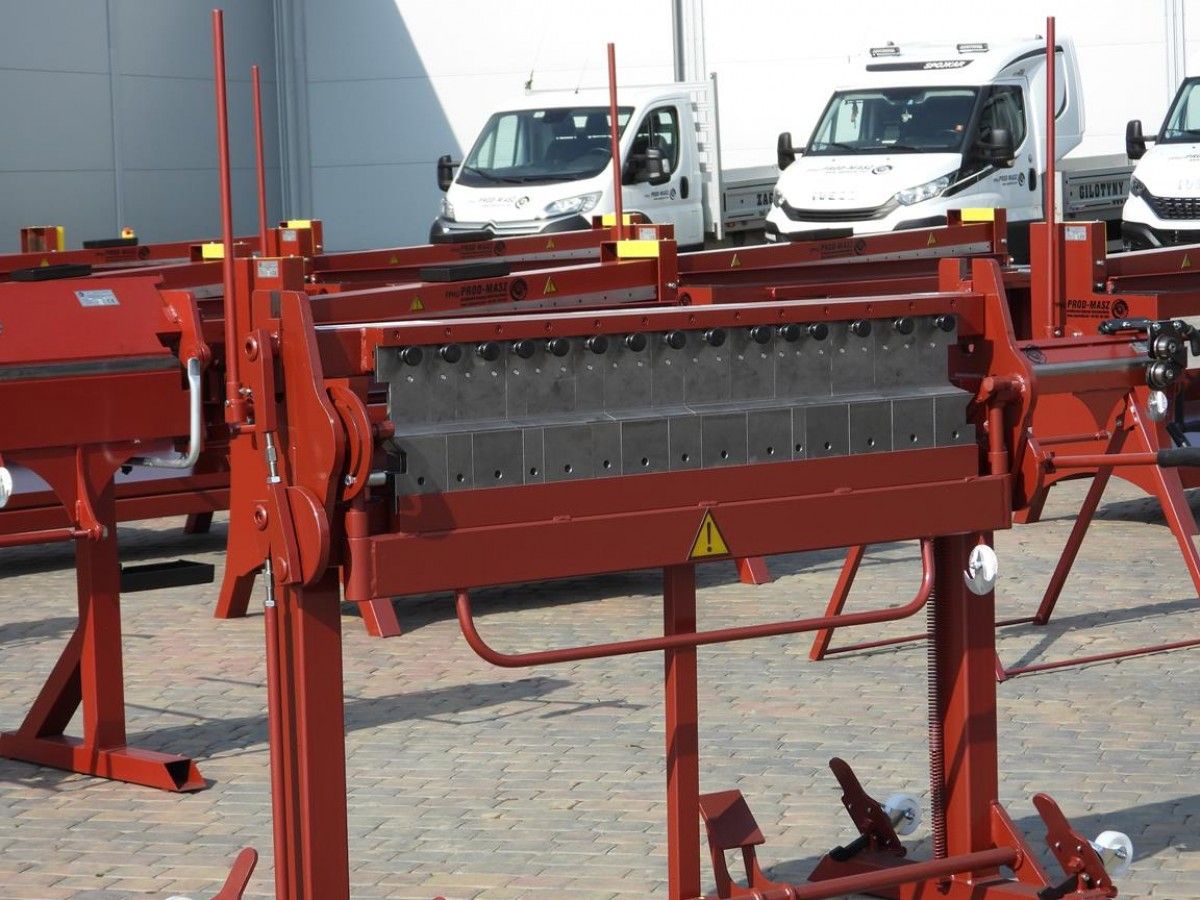

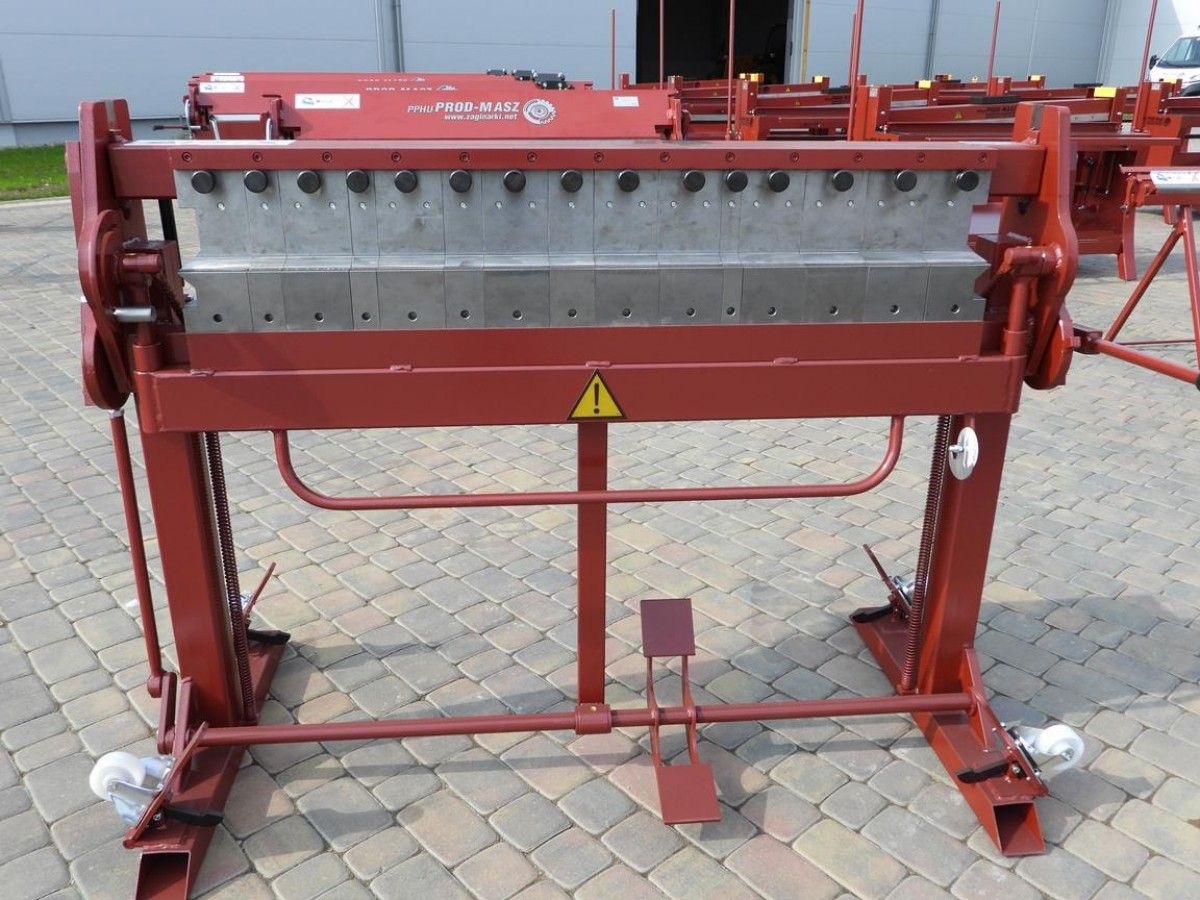

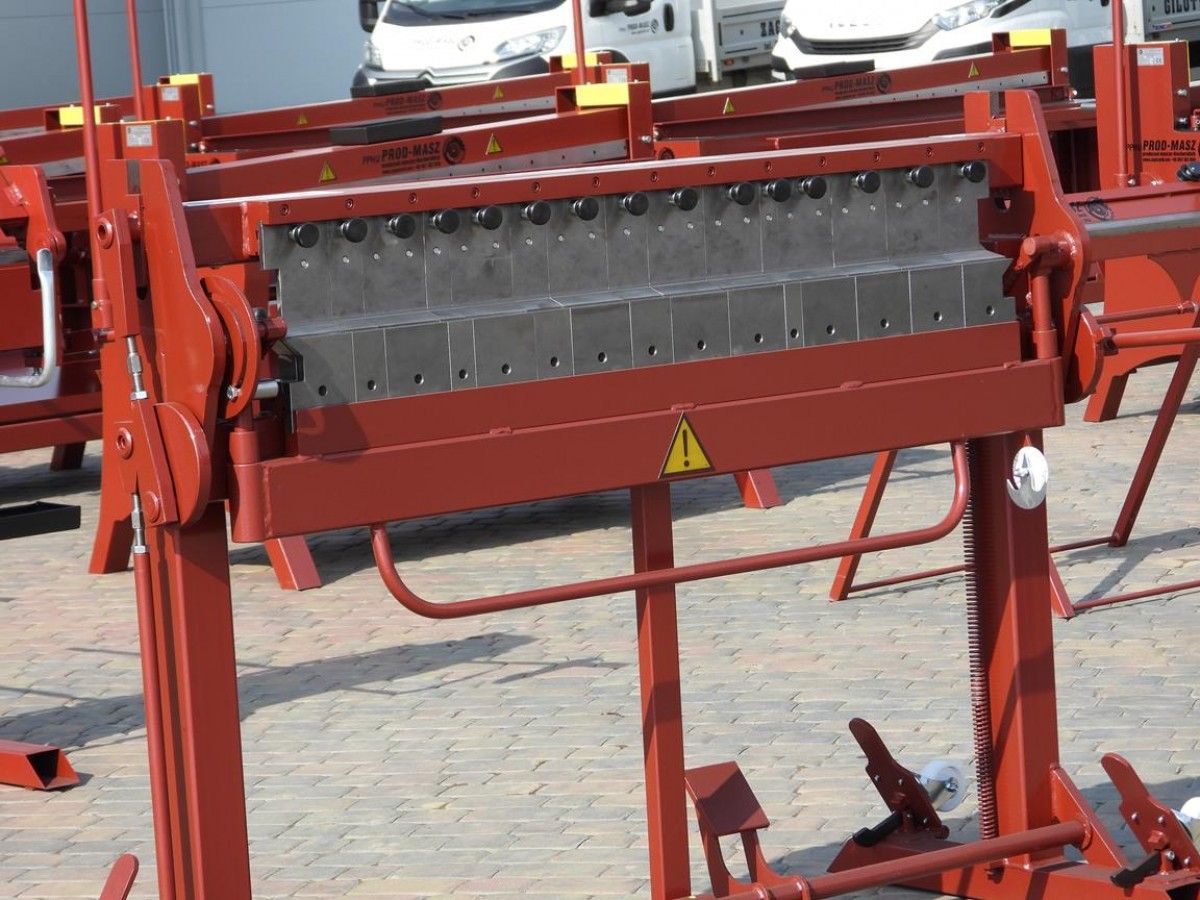

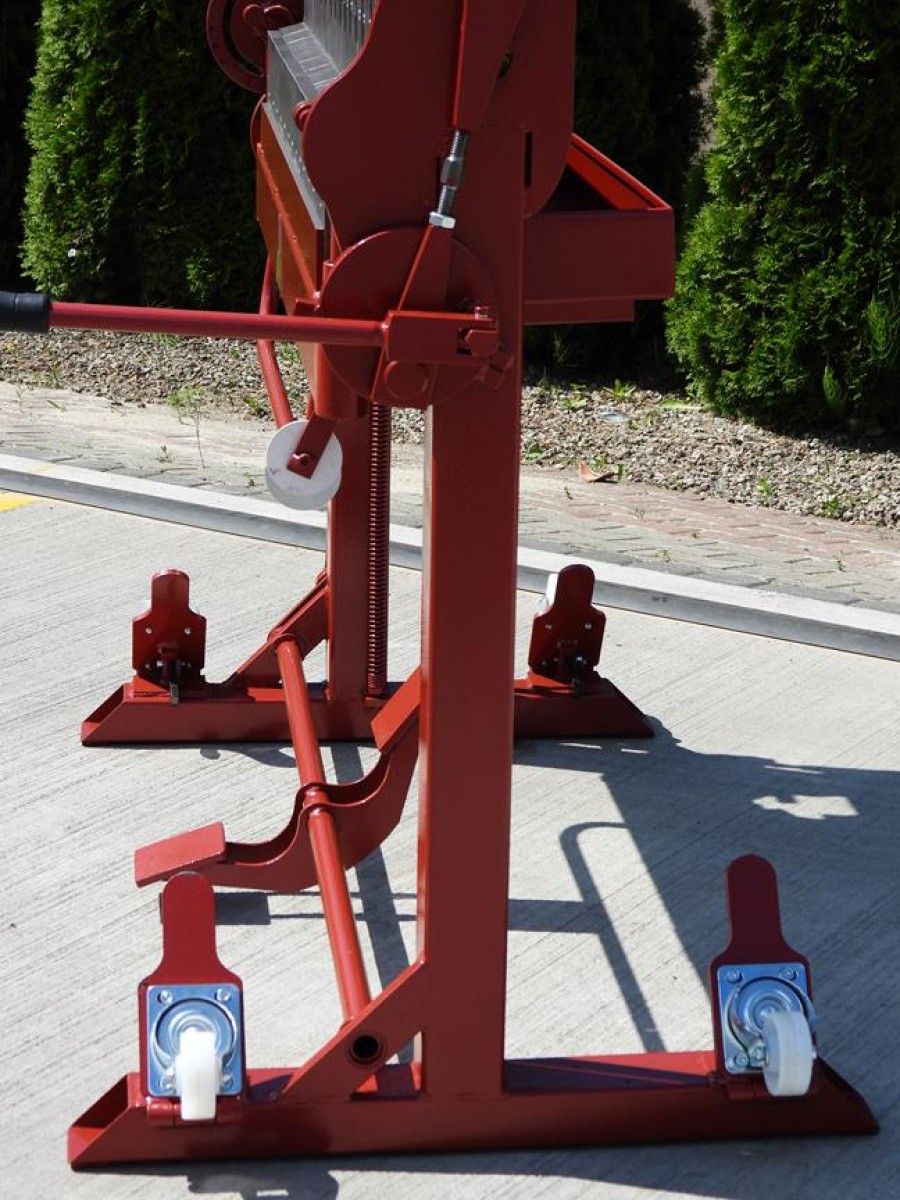

Our bending machine is a well-dimensioned all-welded construction with foot-operated upper beam feed, which greatly simplifies and speeds up the work process.
Description
- Max. working width: 1250 mm
- Bending angle max. 160 degrees
- Max. sheet thickness (steel) 1.5mm

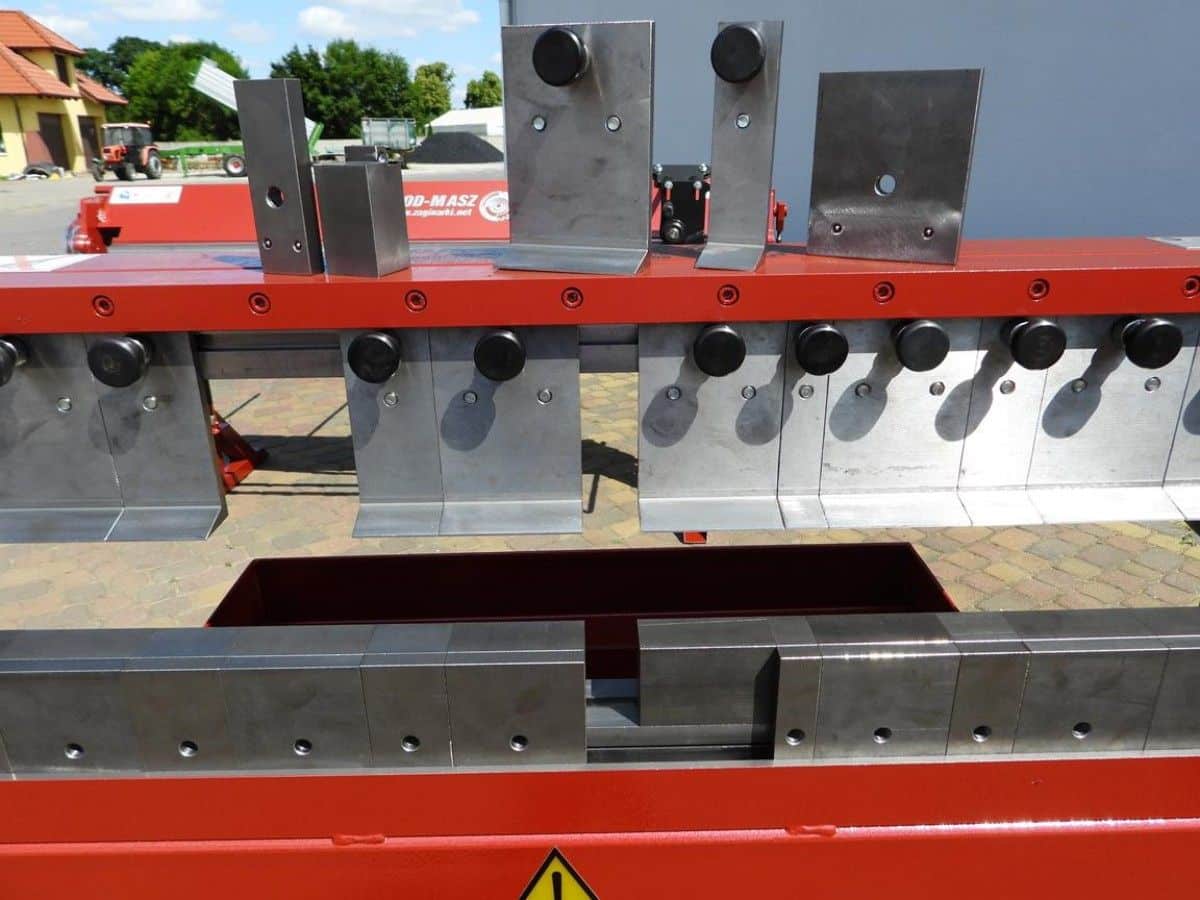

- Segmentback width 30,40,50,60,70 and 100 mm

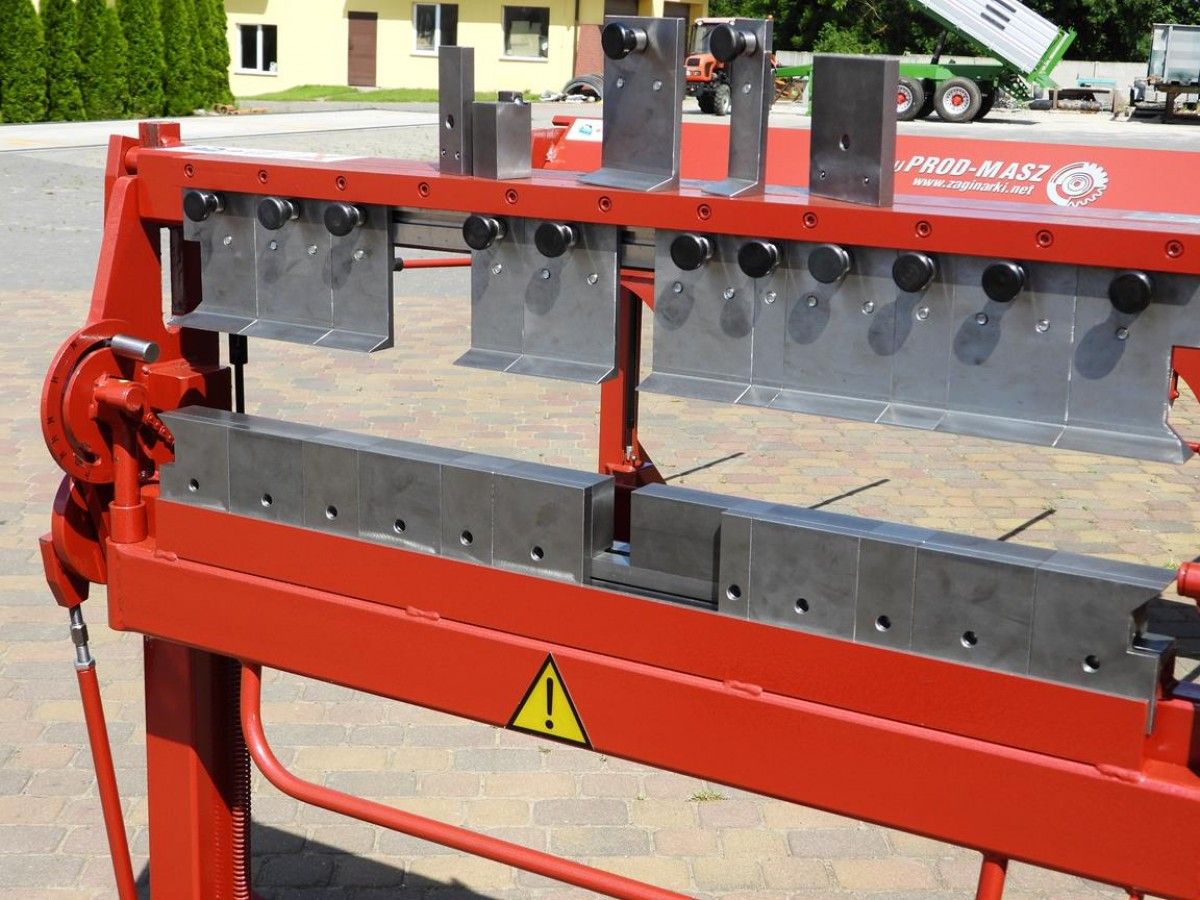

- Three cheeks are equipped with segment jaws (full segmentation)

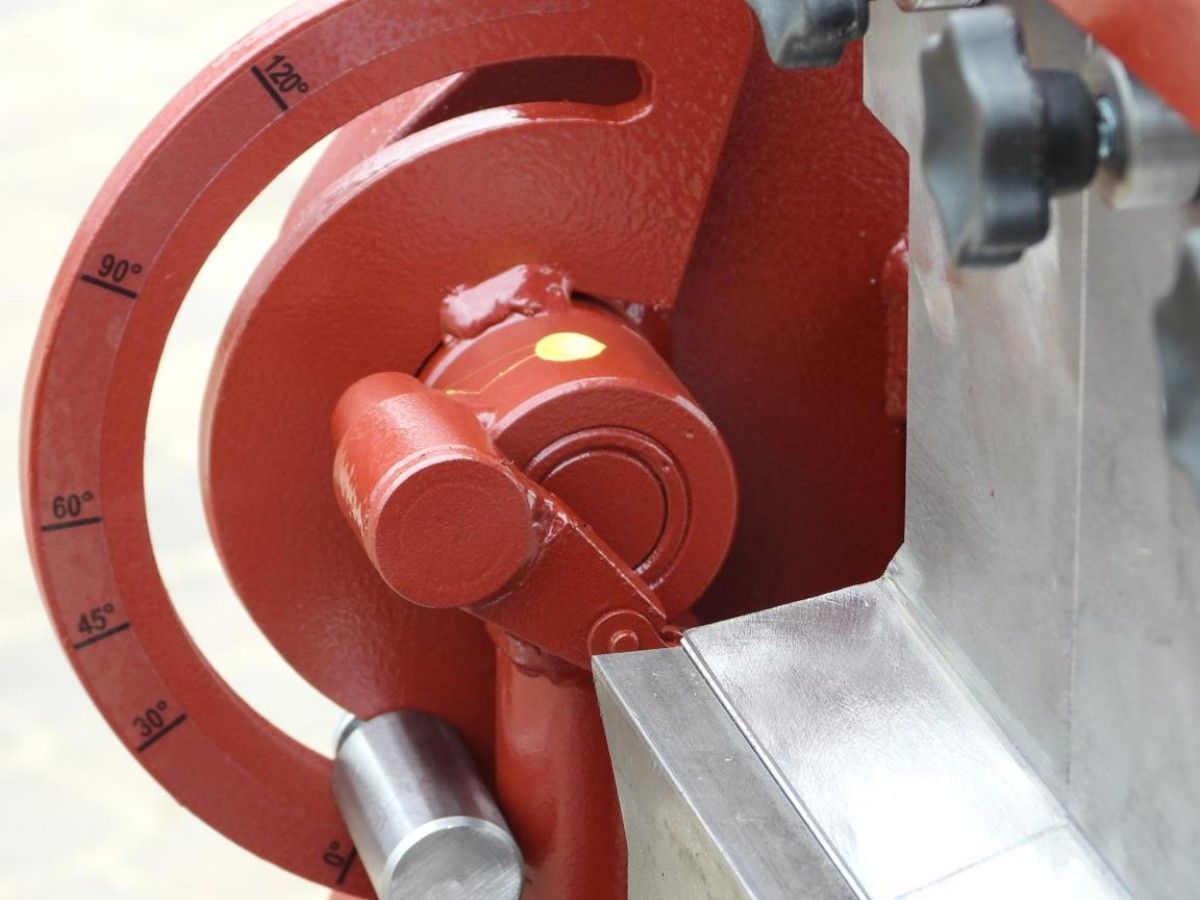

- Application for preset bending angles
- Maximum clearance between bars 100 mm
- Weight 255 kg
