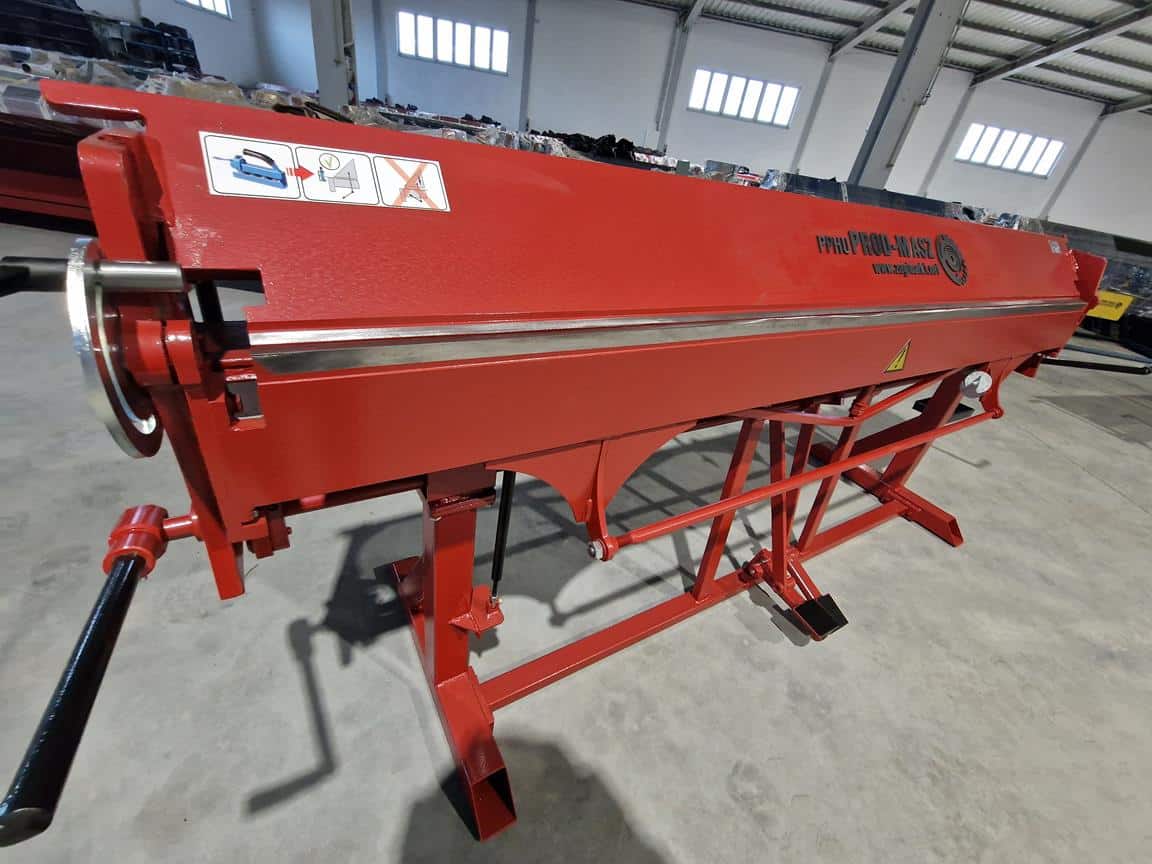

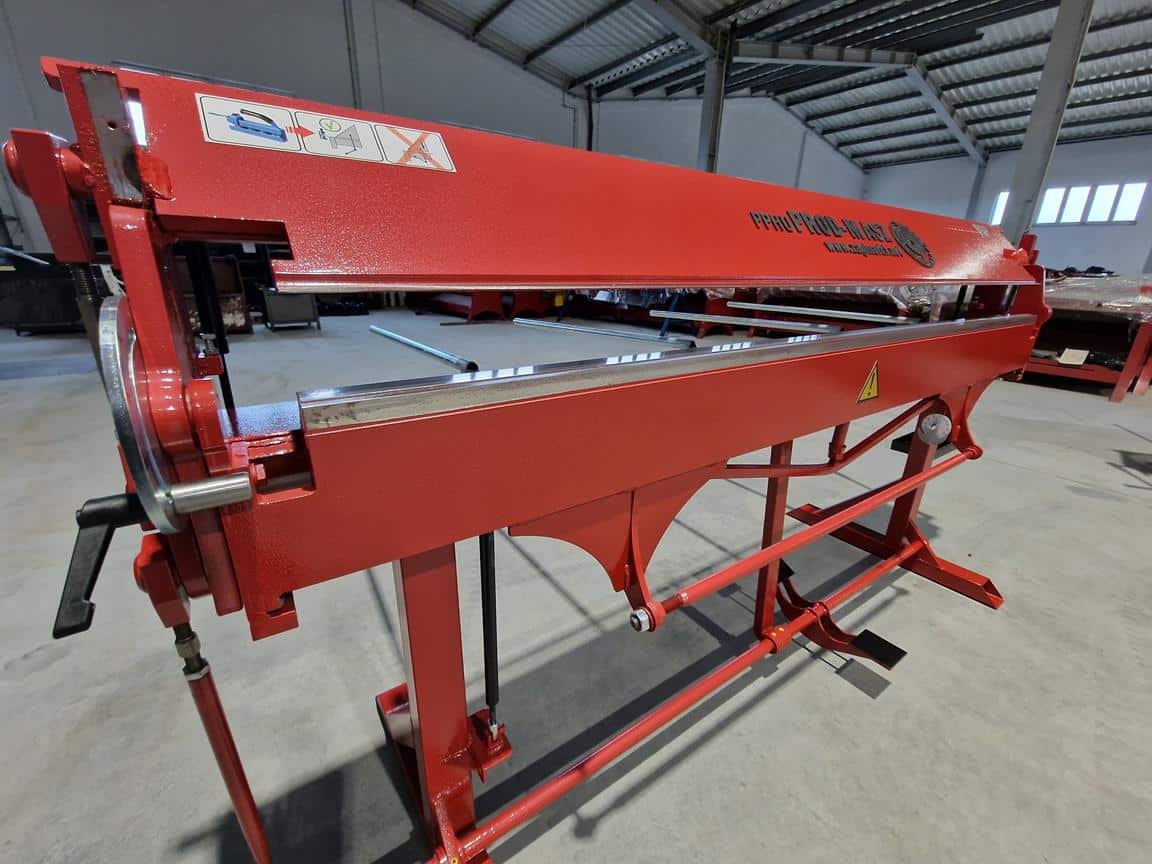

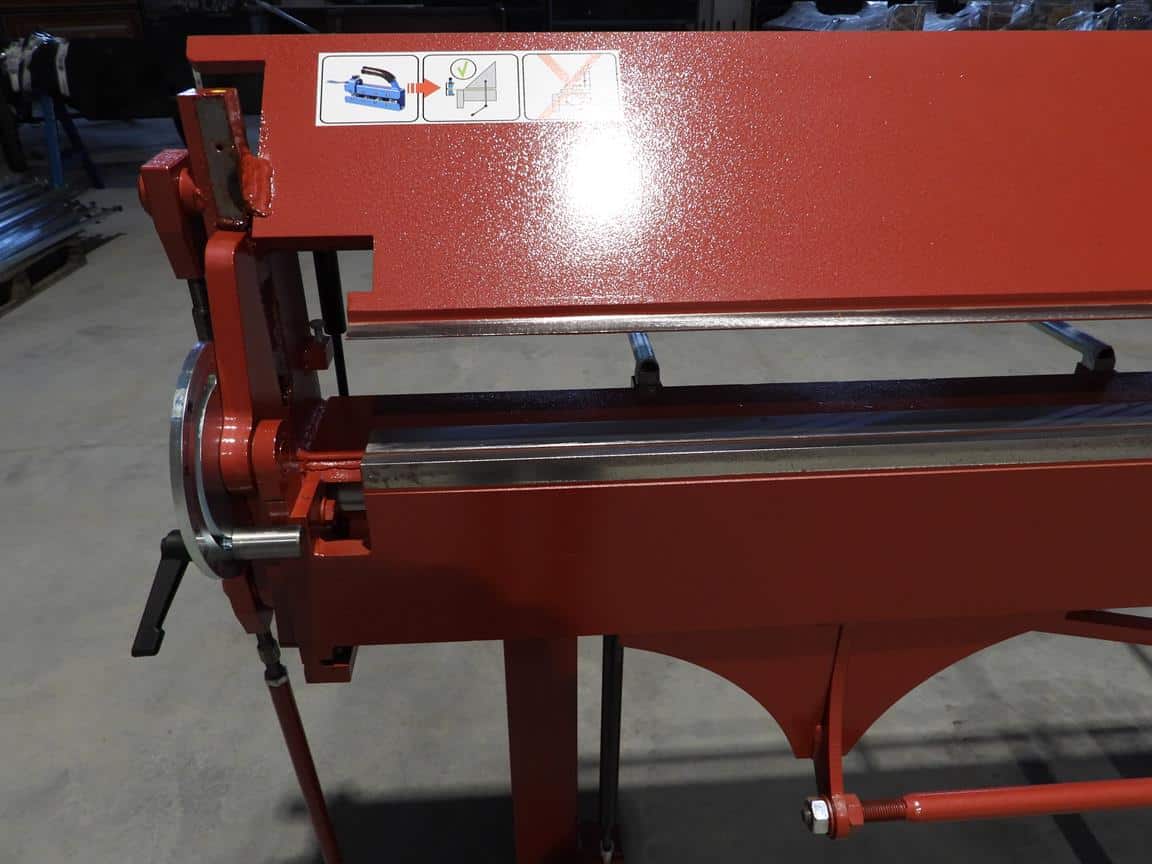

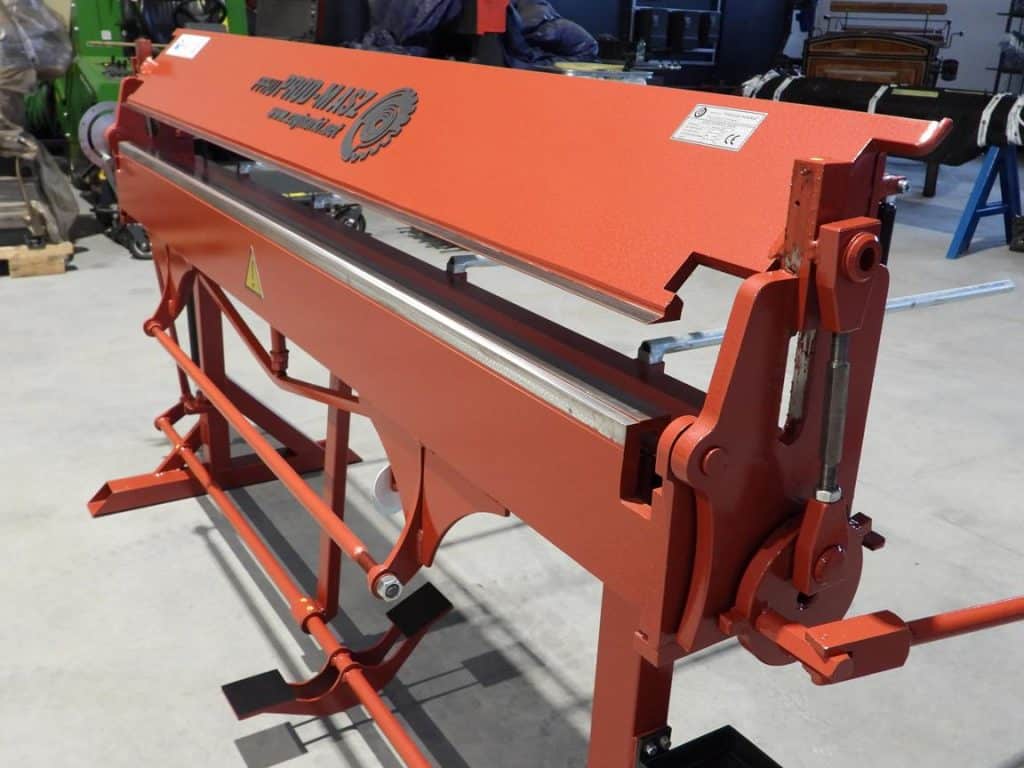

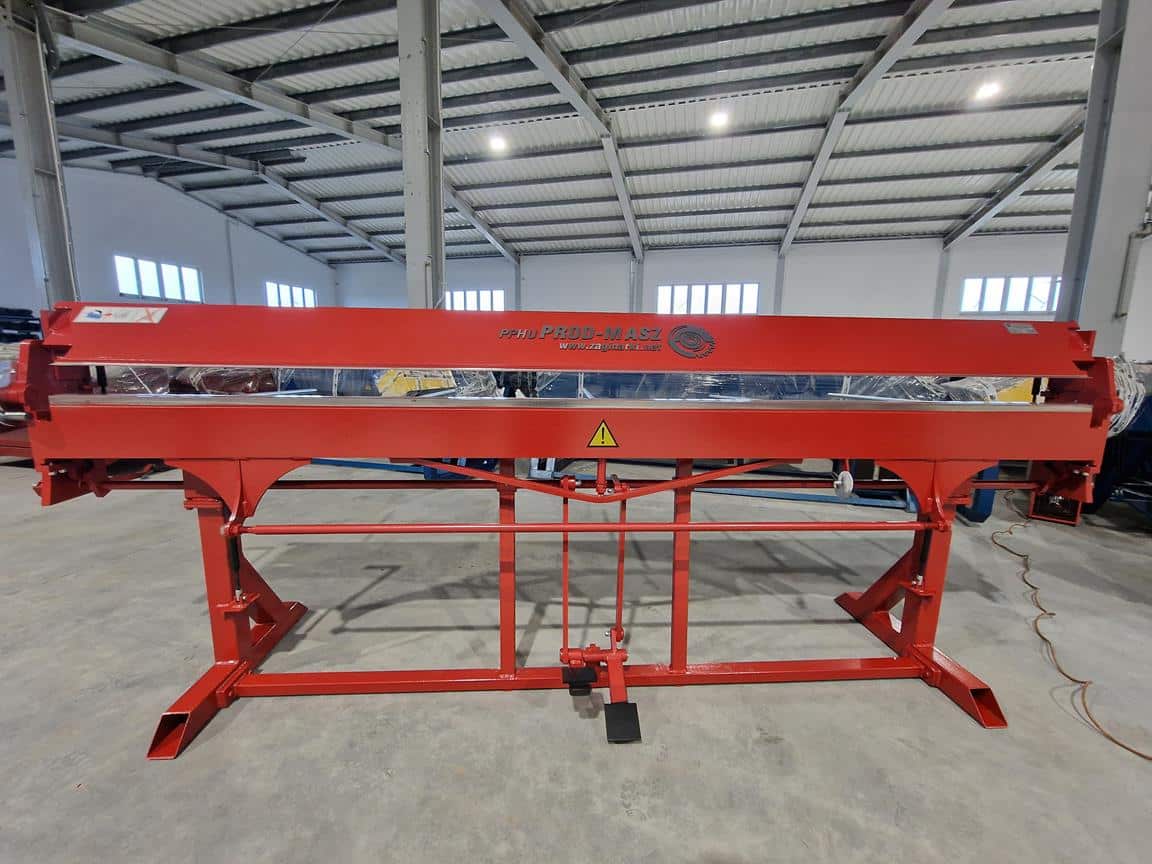

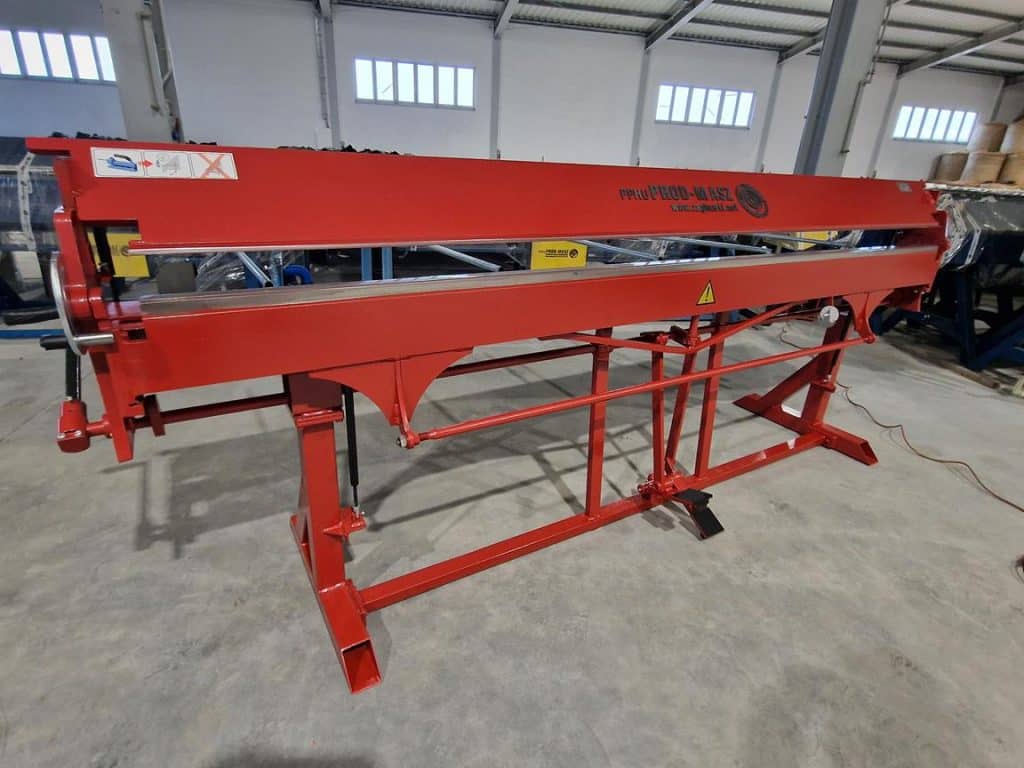

SHEET METAL FOLDER RED PLUS 2700/1.0/160
SHEET METAL FOLDER RED PLUS 2700/1.0/160
RED sheet metal processing machines are the trademark of Prod Masz.

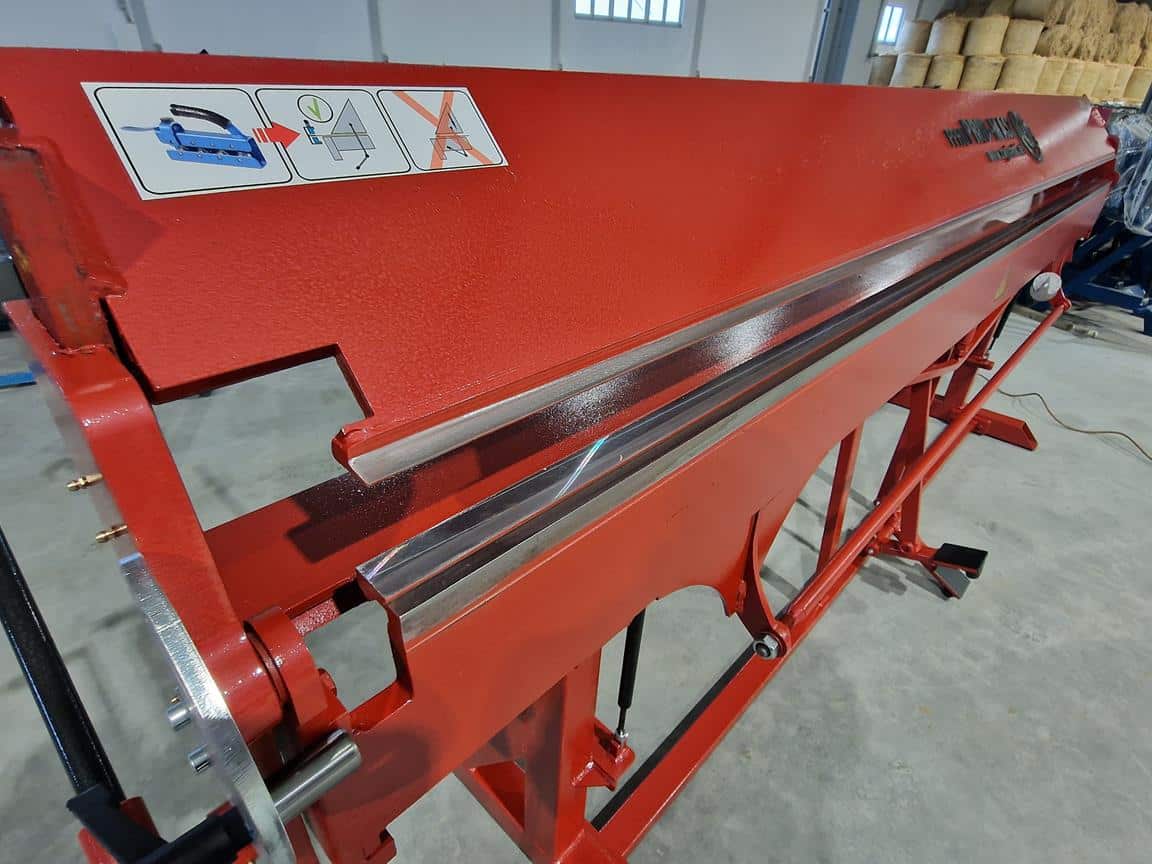

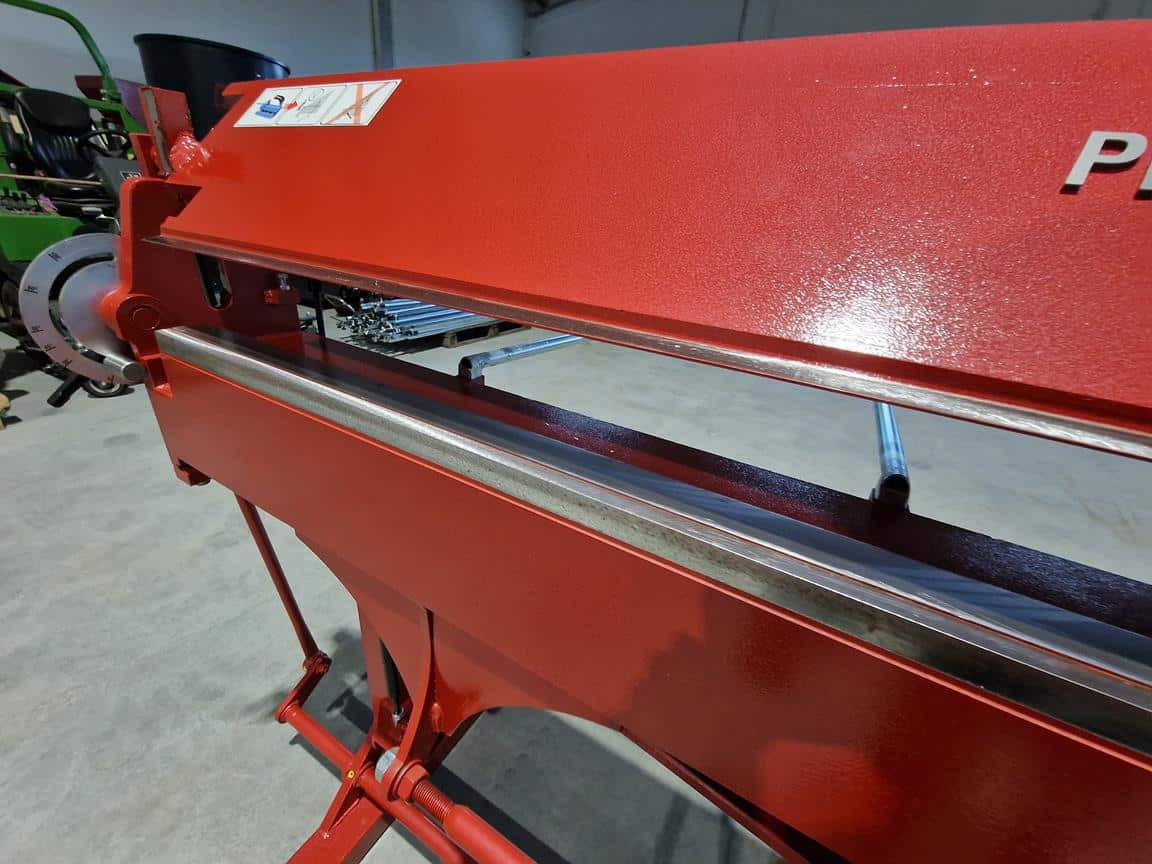

Each RED bending machine has a narrow bending beam, regardless of its length

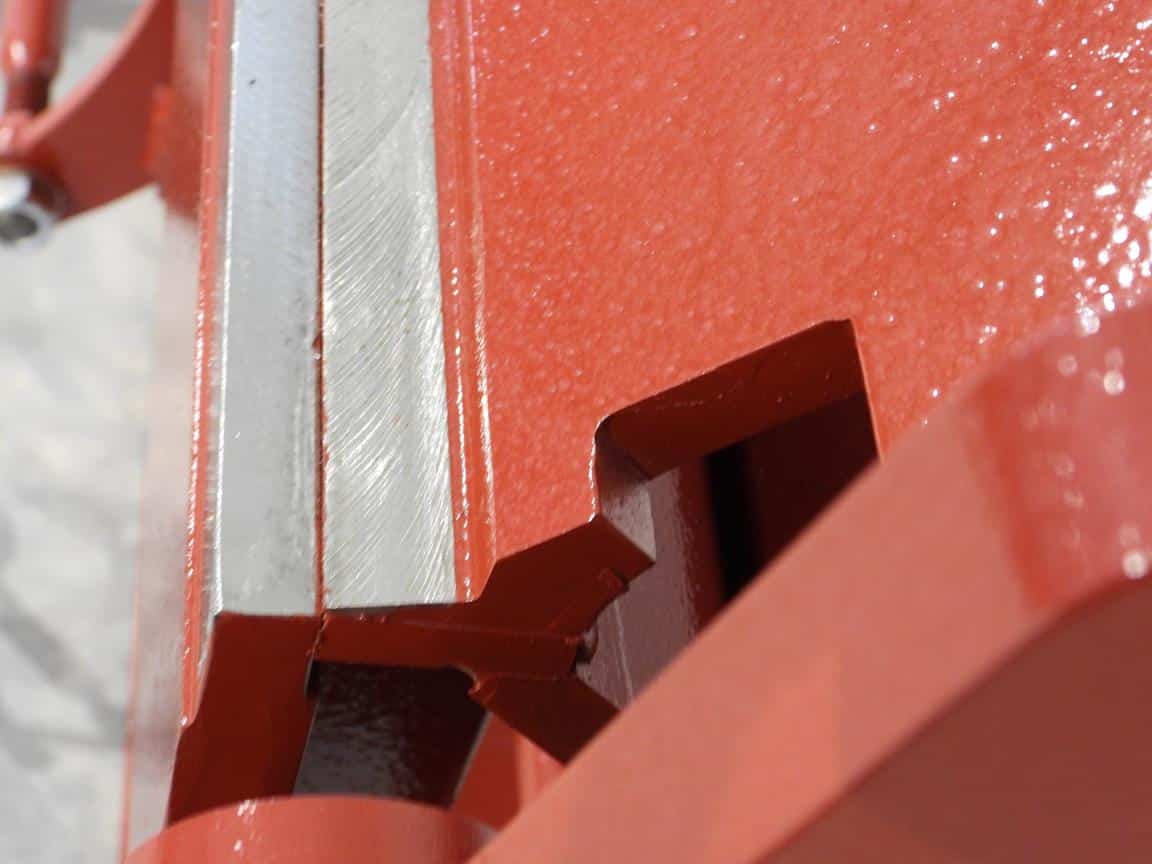

be bendable on 3 sides thanks to side cutouts.
An additional advantage is more space inside the machine for processing.

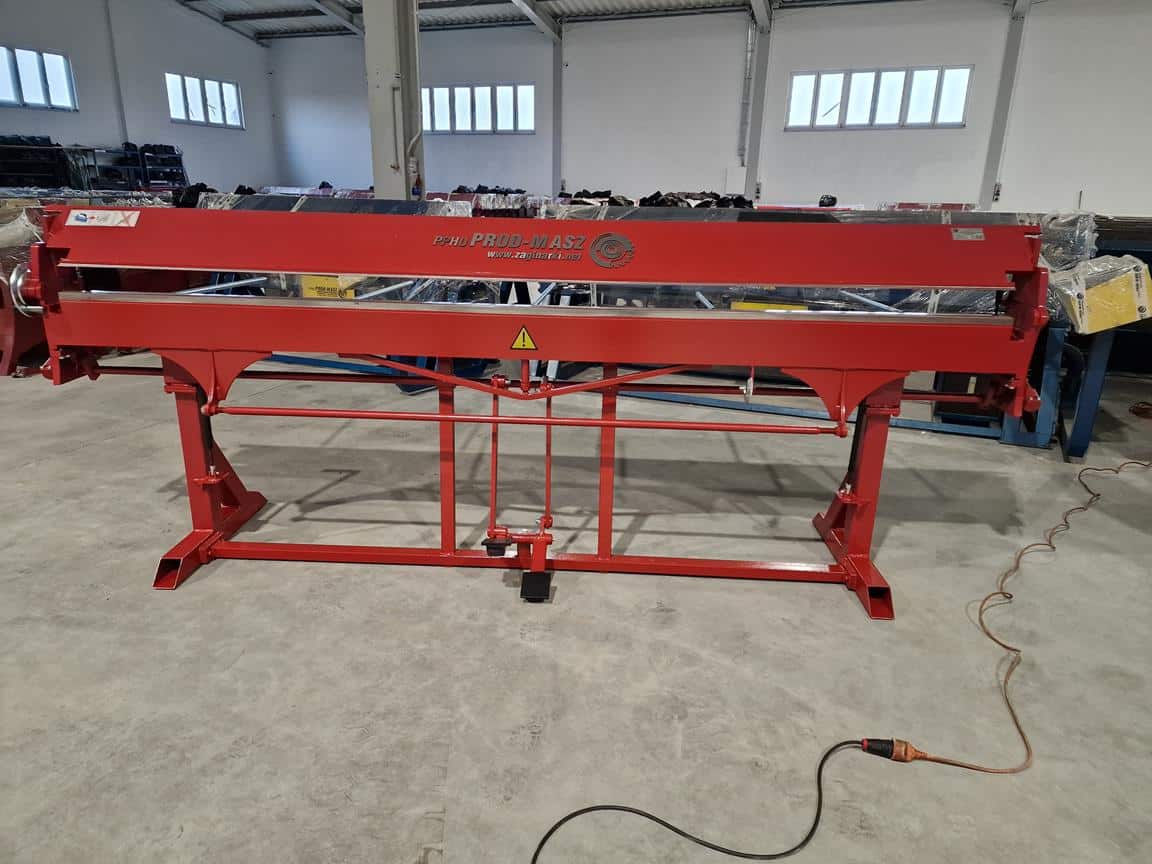

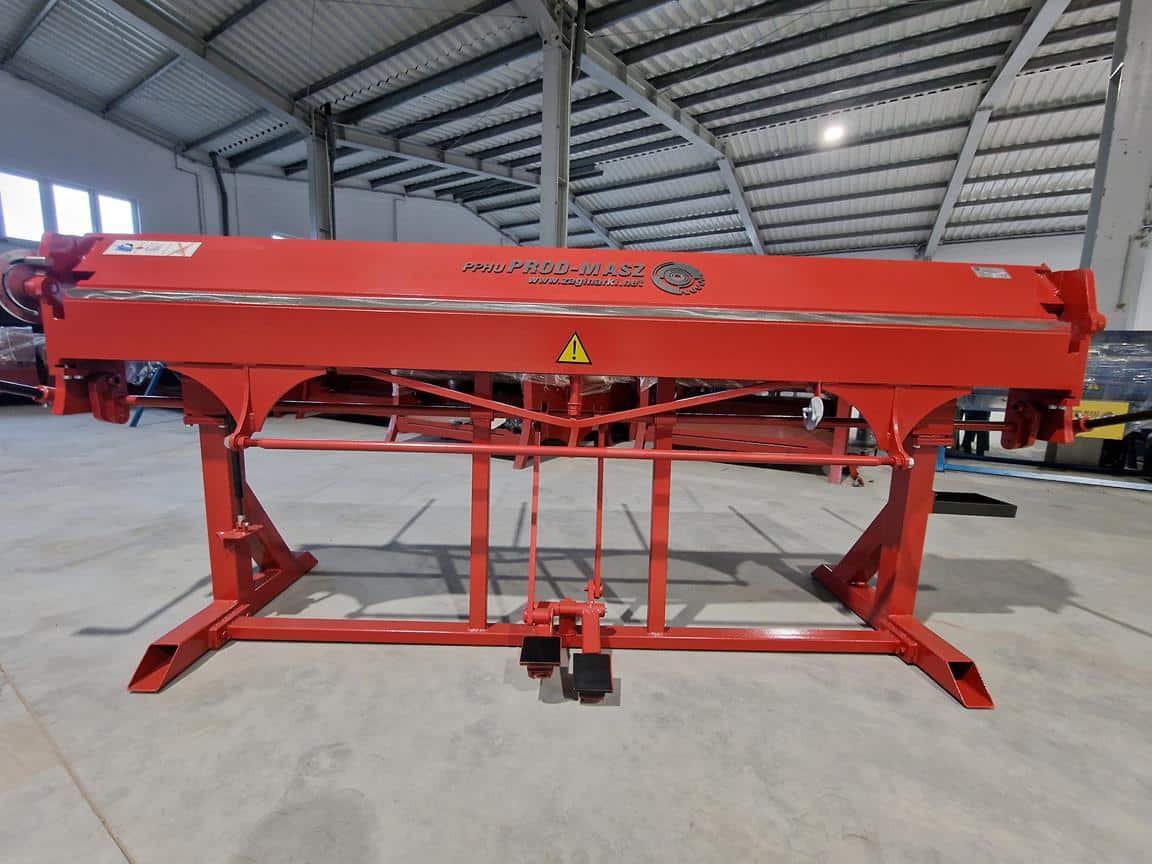

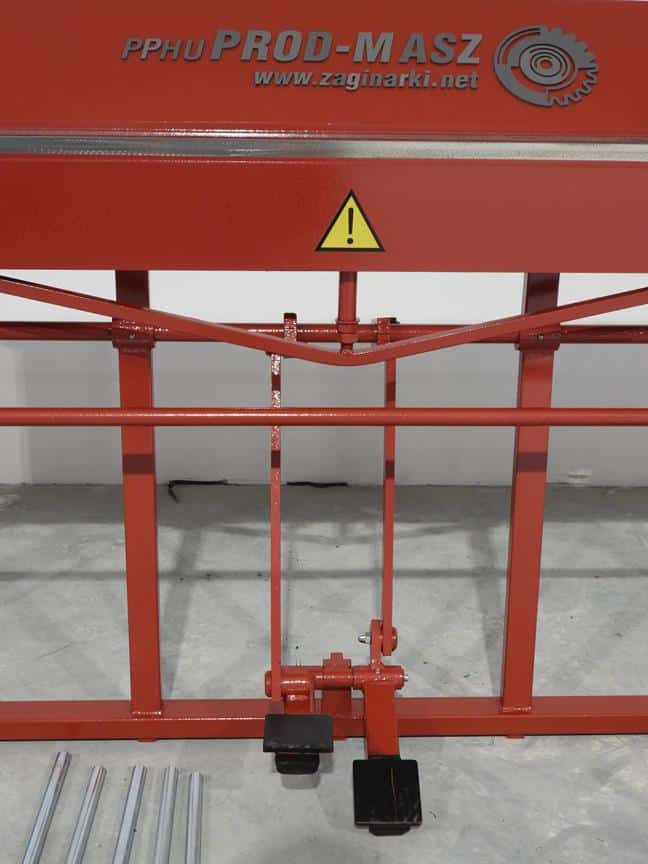

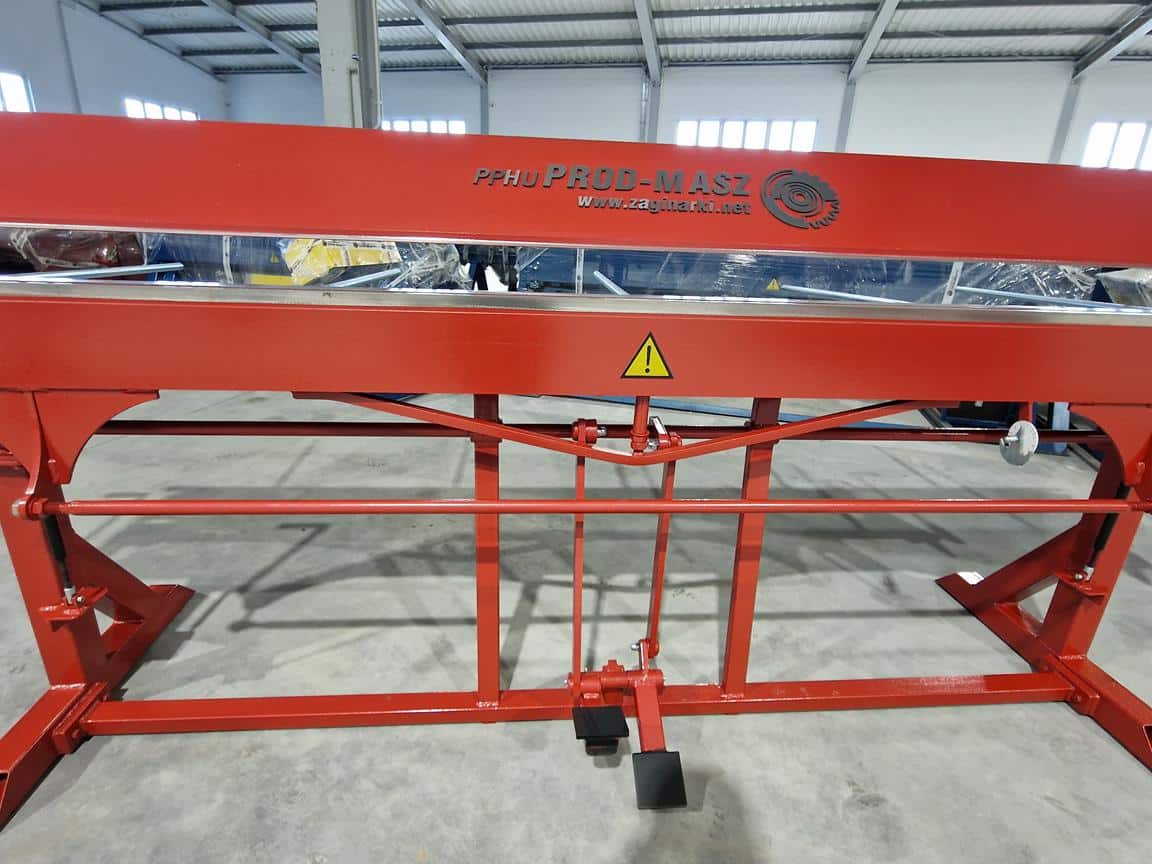

This bending machine model is equipped with foot-operated opening and closing, which makes work easier and faster.
Using the foot mechanism, we open the clamp to the thickness of the sheet metal, then close it with the second lower mechanism.

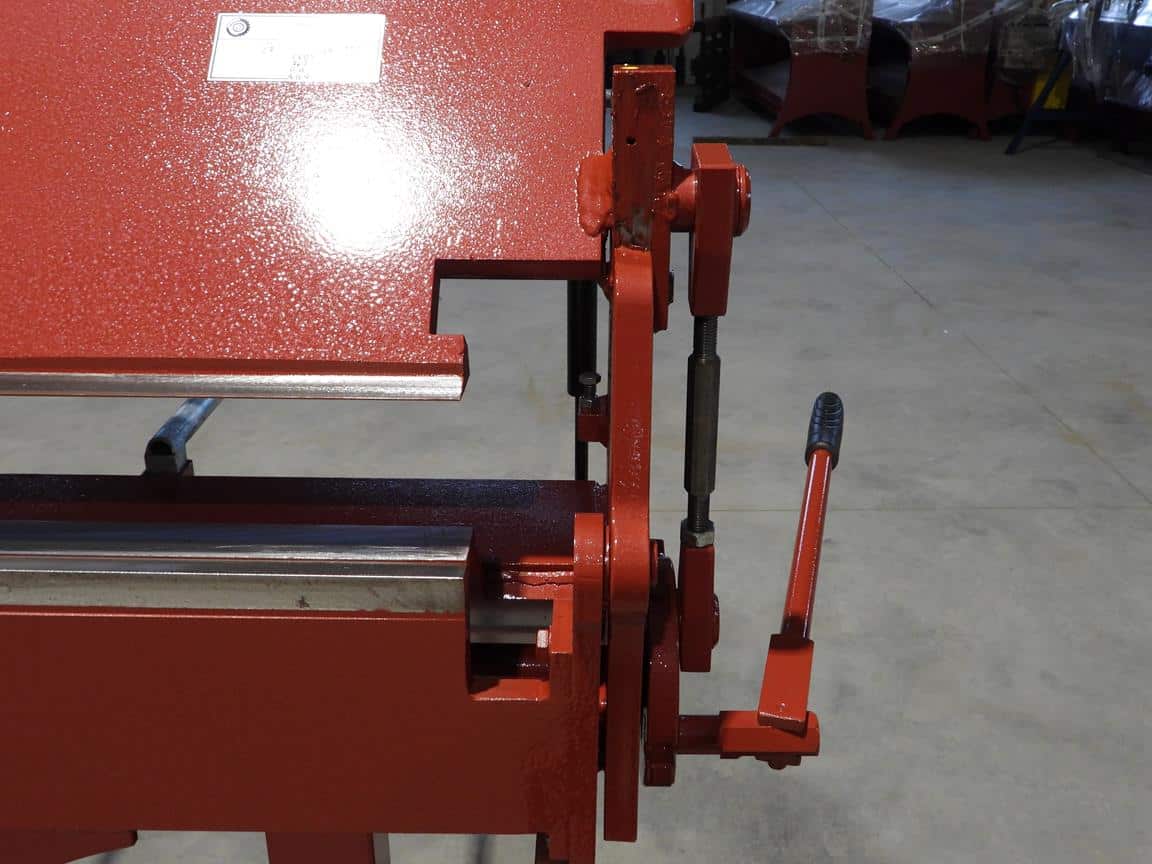

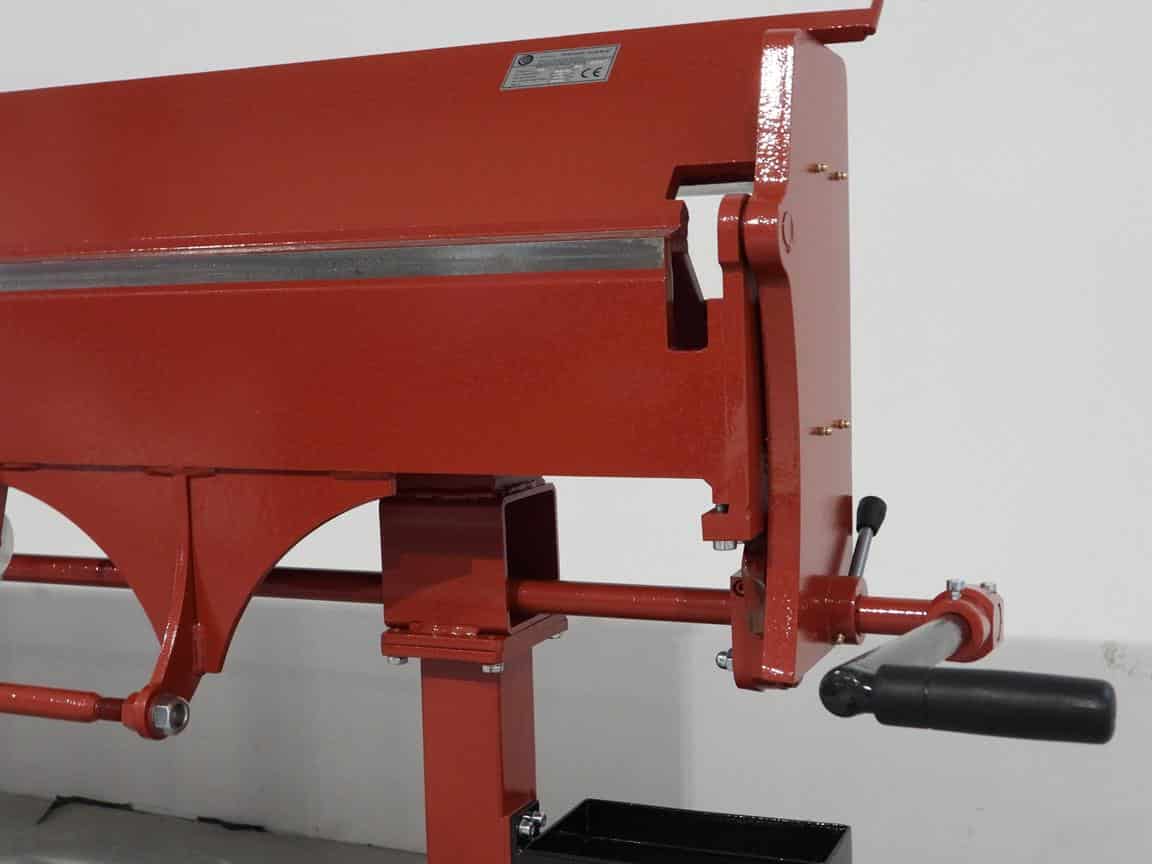

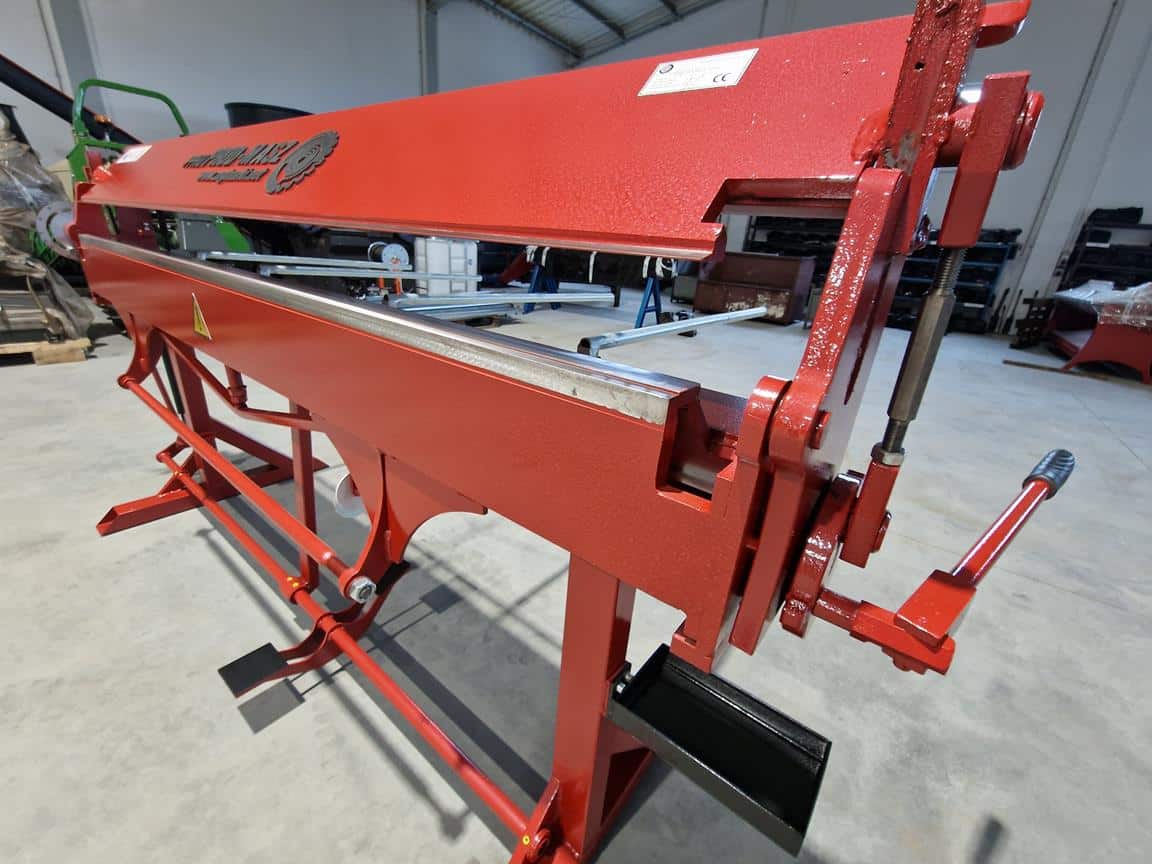

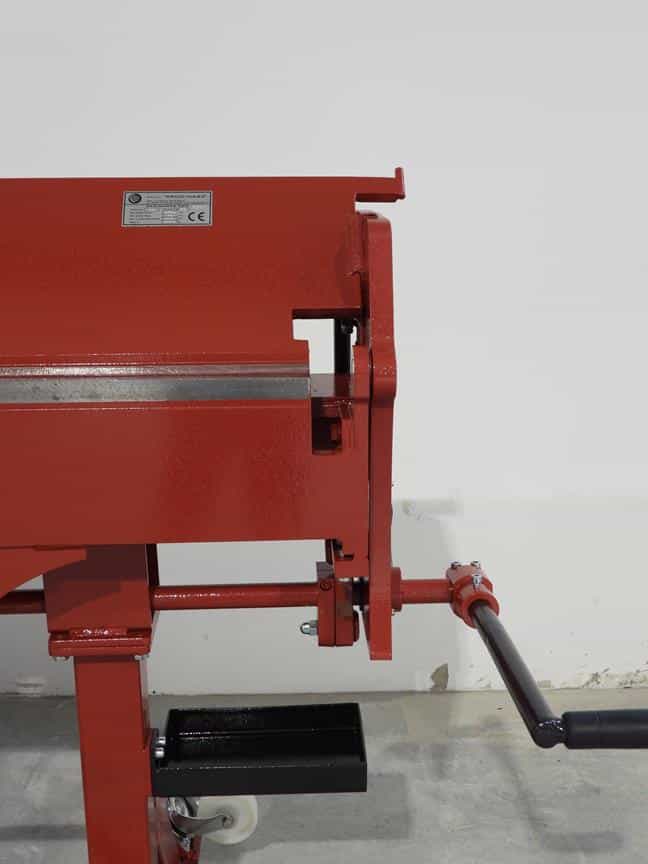

The bending machine works intuitively and easily, which allows it to be operated by one person. The bending machine also has a side handle.
Description
- maximum working width: 2580 mm + 6cm side cutouts on both sides
- Bending capacity: up to 1.0 mm (steel sheet)
- All non-ferrous metals have 30% more bending force
- Bending angle: max. 160 degrees
- Cutting with roller scissors over the entire working width

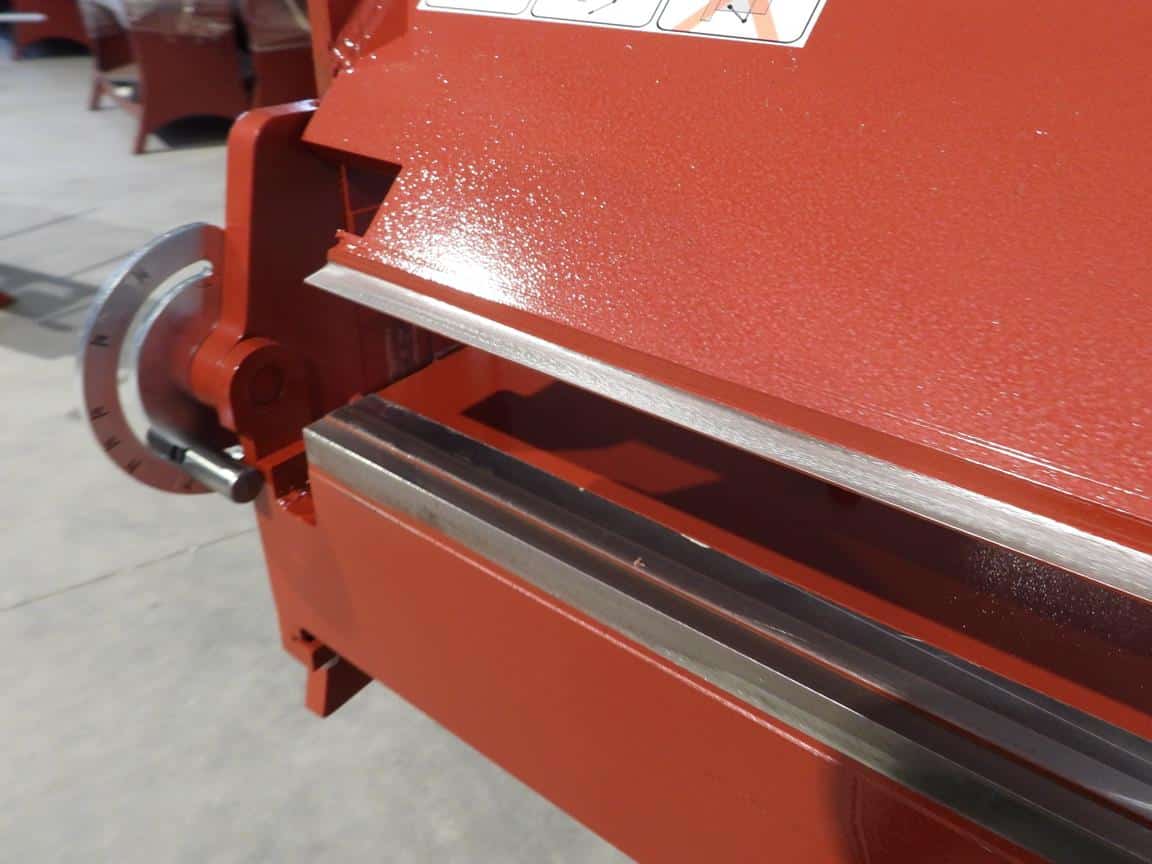

- Bending beam thickness: 15 mm
- lifting the upper beam in three positions
- max. opening: 80 mm

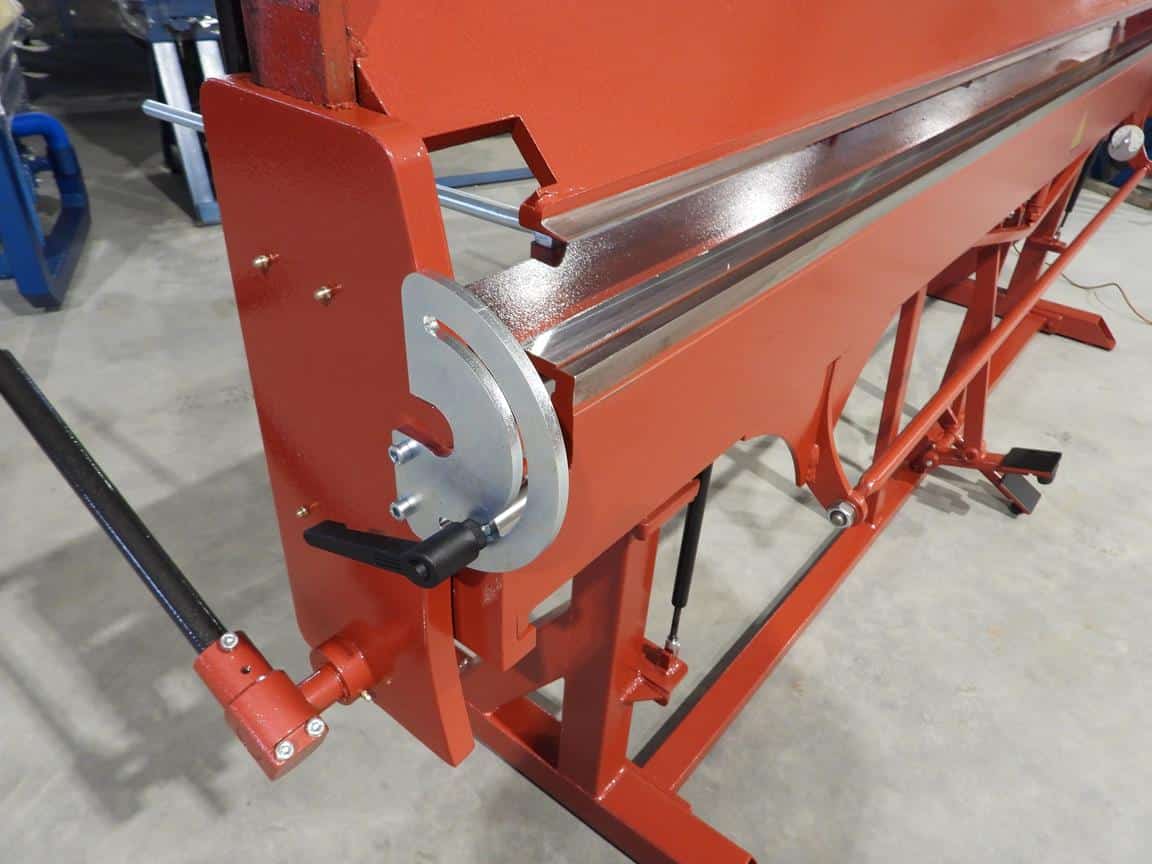

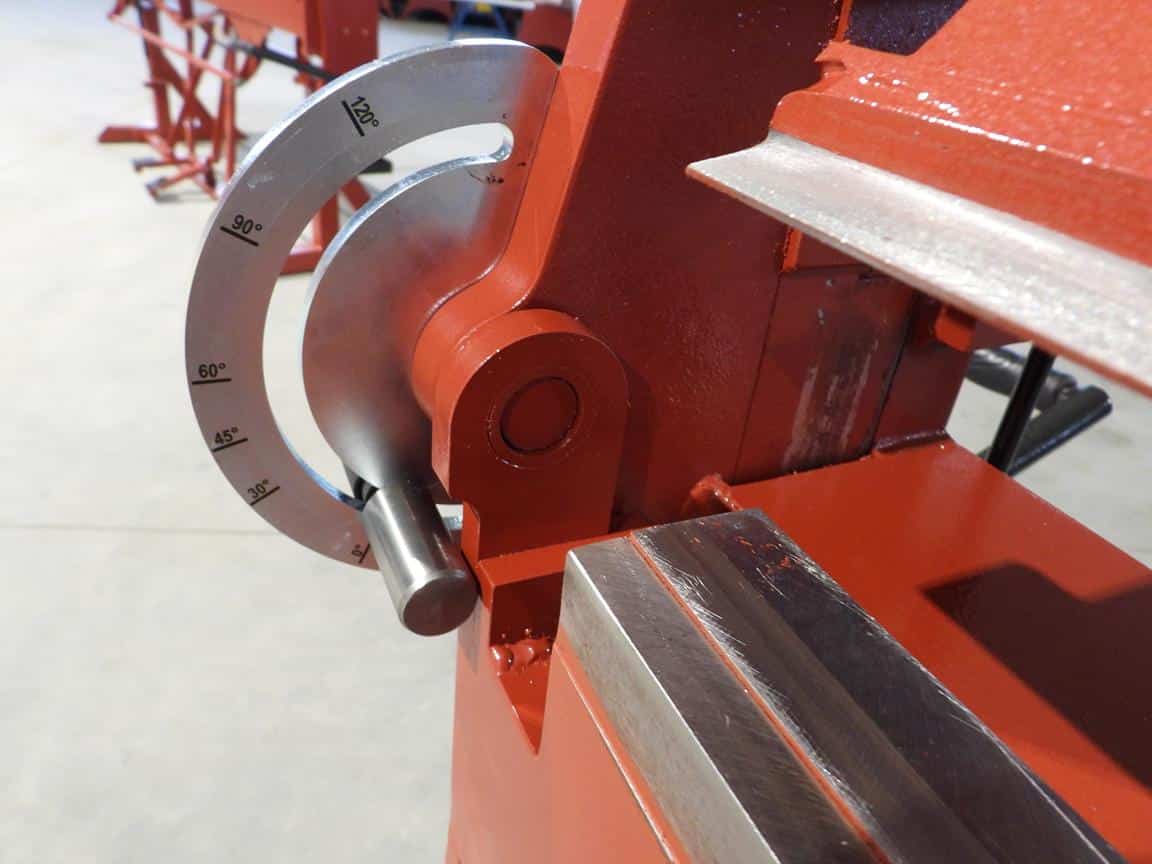

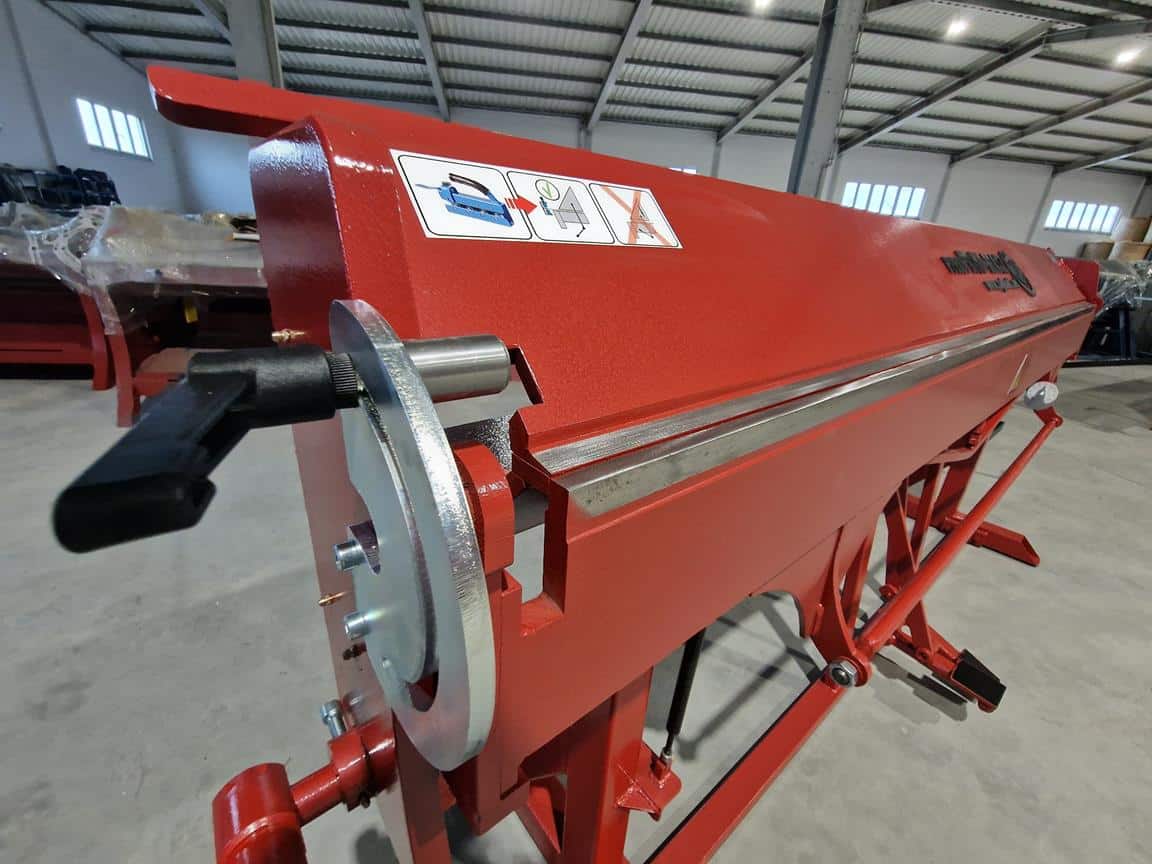

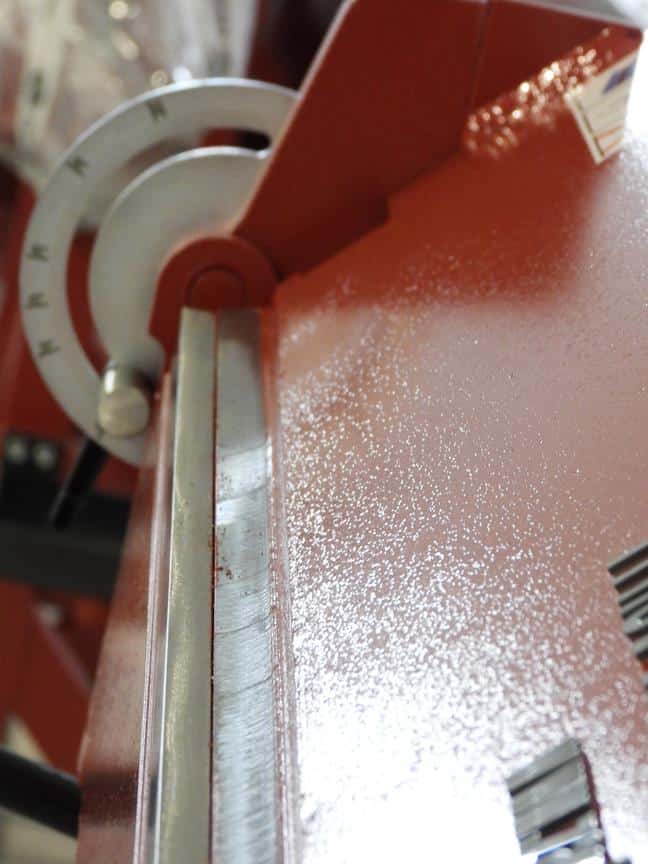

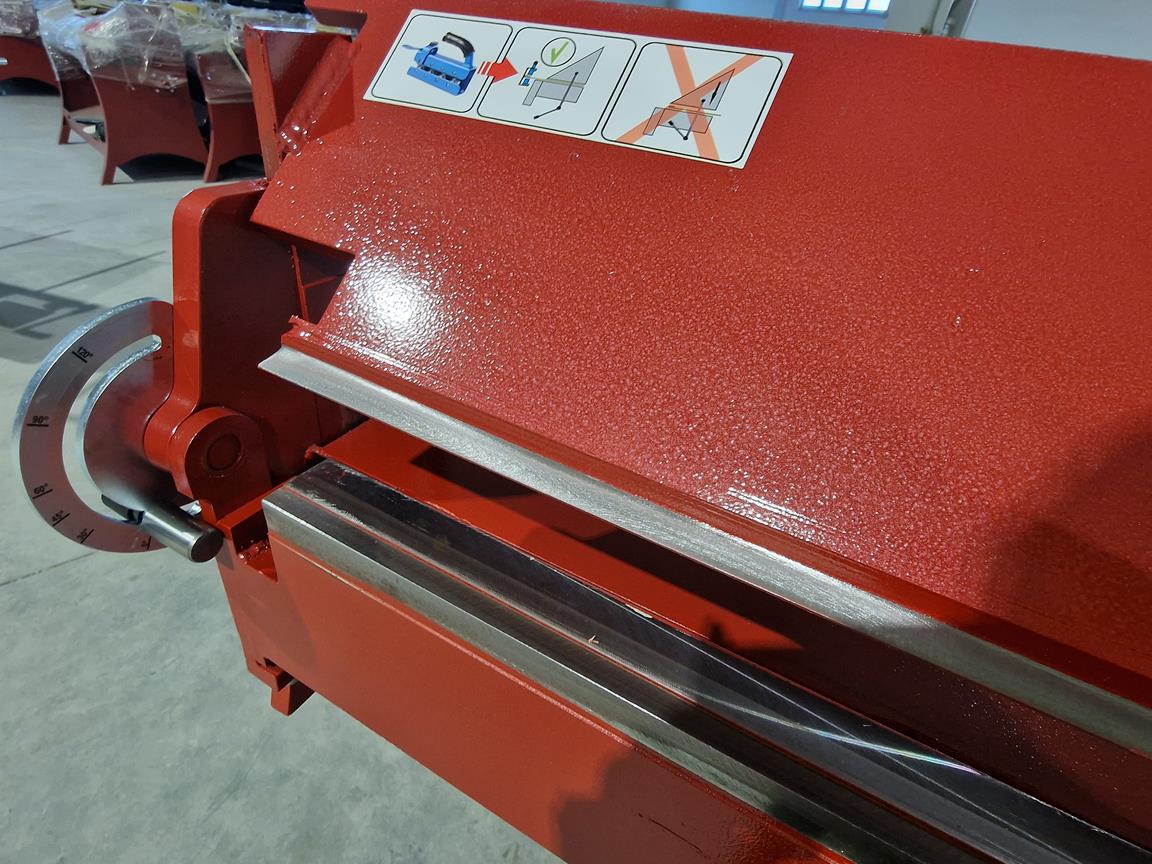

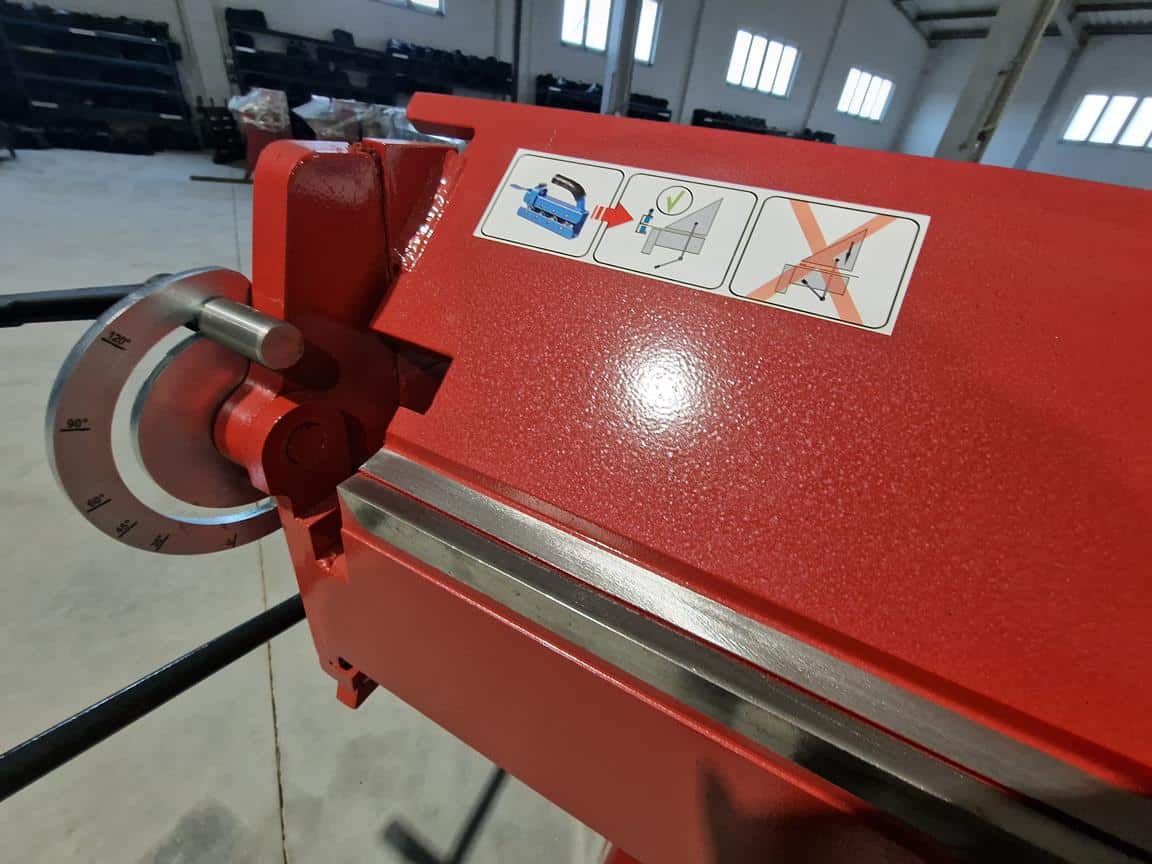

- protractor
- angle stop to 90 degrees
- rear bumpers
- front depth stops
- Weight: approx. 490 kg
- Shears (max cutting capacity 0.8 mm / steel)
- The machine complies with CE guidelines and has a 12-month warranty.
